YM-CTN

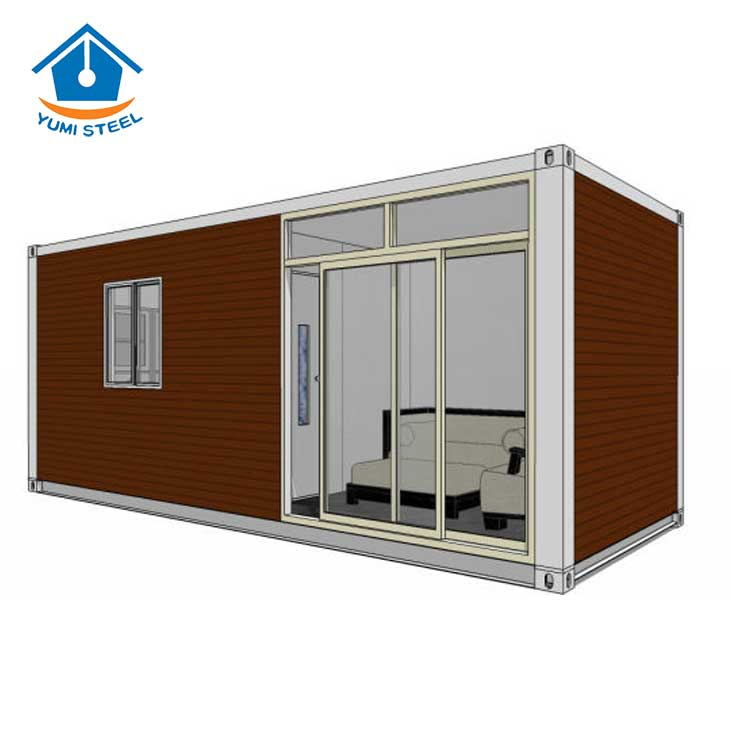

Prefabricated container size
Standard size is 20ft:
External size: L6055mm*W2438mm*H2896mm
Internal size: L5845mm*W2228mm*H2520mm
Assemble container materials
Here are materials for your reference.
Details:
No. | Item | Material description | Quantity |
1 | Frame | Top frame: Frame:2.5mm thick galvanized beams(5630*170*2.5mm*2PCs,2685*170*2.5mm*2PCs) and 4 top corner pieces, Top secondary galvanized beam:80 * 40 * 1.3mm Top cover plate: 0.45mm thick color steel plate; 831mm*0.35mm ceiling panels; Thermal insulation material:50mm glass wool with aluminum foil film, Frame color: optional. Z shaped flashing on ceiling | 1 set |
2 | Base frame: Frame: 2.5mm thick galvanized beams(5630*160*2.5mm*2PCs,2685*160*2.5mm*2PCs) 4 base corner pieces, completed welding, Base secondary galvanized beam:FG50*100*1.5mm frame color:optional. | 1 set | |
3 | Corner Column: Galvanized and painted columns, color: optional. 2526*210*150*2.5mm | 4 pcs | |
4 | Floor | 18mm thick fiber cement board with 1.6mm PVC flooring, color optional | 1 set |
5 | Wall panel | 75mm thick Rockwool sandwich(with A1 fireproof performance) panel(Density:80KG/M³) +0.40mm Alu-zinc color steel sheet Panel width:950/1150mm Length:2.89m | 8 pcs |
6 | Door | Steel door with lock and keys, W845*2030mm Steel thickness:0.50mm | 1 set |
7 | Window | Plastic steel sliding window, size: 1130 * 1130mm, double glass hollow, screen window, anti-theft window. | 1 set |
8 | Accessories | Diameter 50mm PVC downpipe 4 pcs; 831*0.5mm color steel integrated ceiling; 0.4mm color steel column decoration 4 pcs, self tapping, rivets, hexagon socket bolts, glues, etc | 7 set |
9 | Electric system | Complete set: distrubute box 1 set, switch 1 pc, ordinary socket 3 pcs, A/C socket 1 pc, external connectiong industry socket 1 set, LED ceiling light and external lamp over the door, wires, accessories, etc. (According to local voltage) | 1 set |
10 | Waterproof glue & non-silicone resin | This is to avoid water leakage,and condensation | 1 set |
11 | For container combined accessories | For waterproof plastic tape | per demand |
Remark:The material list is for one standard container, the paint color optional.Total budget,please refer to the list above.
Container house application
Residential house;
Office building;
Hotel building;
Hospital building;
Sotrage;
Coffee shop;
Bakery;
Newsstand;
Dress shop; etc.
Packing & Loading & installing
Service & Support
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
Prefabricated container size
Standard size is 20ft:
External size: L6055mm*W2438mm*H2896mm
Internal size: L5845mm*W2228mm*H2520mm
Assemble container materials
Here are materials for your reference.
Details:
No. | Item | Material description | Quantity |
1 | Frame | Top frame: Frame:2.5mm thick galvanized beams(5630*170*2.5mm*2PCs,2685*170*2.5mm*2PCs) and 4 top corner pieces, Top secondary galvanized beam:80 * 40 * 1.3mm Top cover plate: 0.45mm thick color steel plate; 831mm*0.35mm ceiling panels; Thermal insulation material:50mm glass wool with aluminum foil film, Frame color: optional. Z shaped flashing on ceiling | 1 set |
2 | Base frame: Frame: 2.5mm thick galvanized beams(5630*160*2.5mm*2PCs,2685*160*2.5mm*2PCs) 4 base corner pieces, completed welding, Base secondary galvanized beam:FG50*100*1.5mm frame color:optional. | 1 set | |
3 | Corner Column: Galvanized and painted columns, color: optional. 2526*210*150*2.5mm | 4 pcs | |
4 | Floor | 18mm thick fiber cement board with 1.6mm PVC flooring, color optional | 1 set |
5 | Wall panel | 75mm thick Rockwool sandwich(with A1 fireproof performance) panel(Density:80KG/M³) +0.40mm Alu-zinc color steel sheet Panel width:950/1150mm Length:2.89m | 8 pcs |
6 | Door | Steel door with lock and keys, W845*2030mm Steel thickness:0.50mm | 1 set |
7 | Window | Plastic steel sliding window, size: 1130 * 1130mm, double glass hollow, screen window, anti-theft window. | 1 set |
8 | Accessories | Diameter 50mm PVC downpipe 4 pcs; 831*0.5mm color steel integrated ceiling; 0.4mm color steel column decoration 4 pcs, self tapping, rivets, hexagon socket bolts, glues, etc | 7 set |
9 | Electric system | Complete set: distrubute box 1 set, switch 1 pc, ordinary socket 3 pcs, A/C socket 1 pc, external connectiong industry socket 1 set, LED ceiling light and external lamp over the door, wires, accessories, etc. (According to local voltage) | 1 set |
10 | Waterproof glue & non-silicone resin | This is to avoid water leakage,and condensation | 1 set |
11 | For container combined accessories | For waterproof plastic tape | per demand |
Remark:The material list is for one standard container, the paint color optional.Total budget,please refer to the list above.
Container house application
Residential house;
Office building;
Hotel building;
Hospital building;
Sotrage;
Coffee shop;
Bakery;
Newsstand;
Dress shop; etc.
Packing & Loading & installing
Service & Support
Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.
Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
