YM-CTN
Yumi
72104900
Flat pack container house advantage :
1. Top panel and bottom panel have been finished ,easier to install.
2. The Roof panel are already well connected with a special process,it will be 100% water-proof.
3. The position of door and window could be freely adjusted
4. The top panel and bottom panel have been finished, which could make the top and bottom very firmly
Specification :
Container House Size | |||||||
Size | External Dimensions | Internal Dimensions | Weight | ||||
Length | Width | Height | Length | Width | Height | ||
8'X8' | 2435mm | 2435mm | 2896mm | 2235mm | 2235mm | 2625mm | 950kg |
10'X8' | 3025mm | 2435mm | 2896mm | 2825mm | 2235mm | 2625mm | 1150kg |
16'X8' | 4885mm | 2435mm | 2896mm | 4685mm | 2235mm | 2625mm | 1350kg |
20 ’X8‘ (Standard Model) | 6055mm | 2435mm | 2896mm | 5855mm | 2235mm | 2625mm | 1800kg |
24'X8 | 7200mm | 2435mm | 2896mm | 7000mm | 2235mm | 2625mm | 2300kg |
30X8 | 9000mm | 2435mm | 2896mm | 8800mm | 2235mm | 2625mm | 2450kg |
20'XI0' | 6055mm | 3000mm | 2896mm | 5855mm | 2800mm | 2625mm | 2380kg |
Remark: Also available external height of 3300mm individual packing height:648mm. |

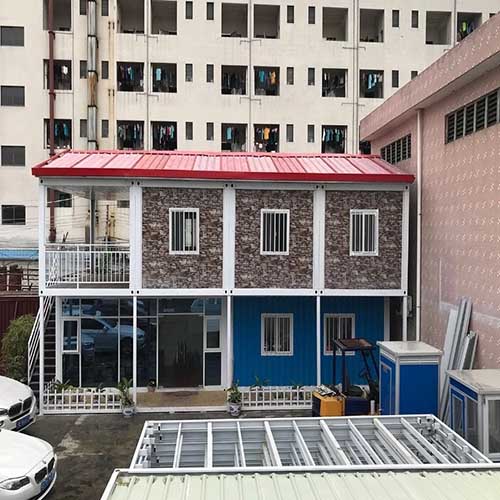

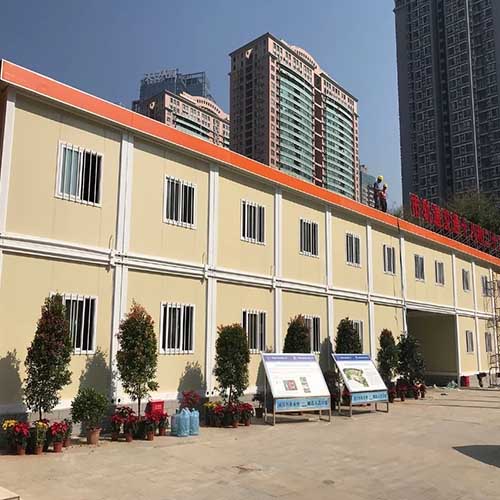

Application :
Packing&Loading details:
All the flat pack container homes will be well packed in one stack,and one stack is one set.After packed,then load in containers.
Our services:
☆ Before sales:
We will follow customers’ request,guide the customer to the most suitable product.This is to make sure customer can find what they exactly need and pay reasonable price.Also we will offer professional consultation and support service for customers' project valuation about cost and satisfaction.
☆ After sales:
When you receive our container house,and get any installation problem,please feel free to contact us for installation instruction.If you find out any quality problem,we will provide the best solution to solve the problem for customers.
Flat pack container house advantage :
1. Top panel and bottom panel have been finished ,easier to install.
2. The Roof panel are already well connected with a special process,it will be 100% water-proof.
3. The position of door and window could be freely adjusted
4. The top panel and bottom panel have been finished, which could make the top and bottom very firmly
Specification :
Container House Size | |||||||
Size | External Dimensions | Internal Dimensions | Weight | ||||
Length | Width | Height | Length | Width | Height | ||
8'X8' | 2435mm | 2435mm | 2896mm | 2235mm | 2235mm | 2625mm | 950kg |
10'X8' | 3025mm | 2435mm | 2896mm | 2825mm | 2235mm | 2625mm | 1150kg |
16'X8' | 4885mm | 2435mm | 2896mm | 4685mm | 2235mm | 2625mm | 1350kg |
20 ’X8‘ (Standard Model) | 6055mm | 2435mm | 2896mm | 5855mm | 2235mm | 2625mm | 1800kg |
24'X8 | 7200mm | 2435mm | 2896mm | 7000mm | 2235mm | 2625mm | 2300kg |
30X8 | 9000mm | 2435mm | 2896mm | 8800mm | 2235mm | 2625mm | 2450kg |
20'XI0' | 6055mm | 3000mm | 2896mm | 5855mm | 2800mm | 2625mm | 2380kg |
Remark: Also available external height of 3300mm individual packing height:648mm. |
Application :
Packing&Loading details:
All the flat pack container homes will be well packed in one stack,and one stack is one set.After packed,then load in containers.
Our services:
☆ Before sales:
We will follow customers’ request,guide the customer to the most suitable product.This is to make sure customer can find what they exactly need and pay reasonable price.Also we will offer professional consultation and support service for customers' project valuation about cost and satisfaction.
☆ After sales:
When you receive our container house,and get any installation problem,please feel free to contact us for installation instruction.If you find out any quality problem,we will provide the best solution to solve the problem for customers.
