30mm Thermal PUR/PIR Sandwich Panels with Aluminum Foil

Our PIR sandwich panels can reach class 1 flame spread and smoke development,as per ASTM standards.The minimum thickness is 30mm,and we can also make 40 ~ 150mm panel thickness,but some of the special thickness need to open new mould.Warmly welcome you to discuss for more details.

Quantity:
  • 1000
  • Yumi steel
  • 72104900

30mm thermal PUR/PIR sandwich panels with aluminum foil


1.Panel type & material instruction:

01-pir-foam-sandwich-panel-instruction

Brief information :

Effective coverage :

1000 mm

Rib height :

36 mm (± 3 mm)

Rib spacing :

333 mm

Rib quantity :

4

Insulation available thickness :

30 ~ 150 mm

Insulation material :

PUR (Polyurethane), PIR (Polyisocyanurate)

Thermal Conductivity :

λPUR = 0.023 W/mK1 & λPIR =0.021 W/mK1

Density :

38 ~ 42 KG/M³

Top steel sheet thickness :

0.40 ~ 0.75 mm

Aluminum kraft paper thickness :

0.065 mm

Panel length :

Up to transportable length



Top sheet :

The top sheet can be galvanized steel,PPGL/PPGI steel,aluminum metal sheets,Al-Mg-Mn alloy metal sheets,and stainless steel sheets.If you want to make in steel sheets,there is also coating types for choices,which are PE, SMP, HDP, PVDF,etc.


Aluminum foil:

Size (W * THK) :

1.03 m * 0.065mm

Coating thickness :

 1.2 g/m²

Tensile strength :

 130 ob/Mpa

Gloss :

 85 °

Coating pencil hardness :

 2H

Impact resistance :

 50 kg.cm (5N.m)

Adhesive properties :

Bonded 180°, peel the coating and it does not separate

Substrate and coating :

Acid resistance, boiling water resistance, salt tolerance, alkali resistance, oil resistance and alcohol resistance

Surface treament:

Orange peel embossing and Matte coating



Core material :

PIR is actually called polyurethane modified polyisocyanurate, which is a foam obtained by modifying polyurethane.The performance is quite different from polyurethane.It’s class 1 fireproof level.

PUR is short for polyurethane,which is a polymer having a urethane segment repeating structural unit prepared by reacting an isocyanate with a polyol.Our PUR is class 2 fireproof level.



2.Panel features:



☆ PU sandwich panels with aluminum foils is integrated with load-bearing,heat-insulating, fire-proof and waterproof function.

☆ PIR sandwich panels with aluminum kraft paper can be non-toxic and tasteless,and it doesn’t requires no secondary decoration.

☆ This panel realizes a waterproof shunt design,which can reduce the water area of the panel.It replaces the color steel sheet with aluminum foil,in this way,it improves the high temperature resistance and corrosion resistance of the product.



3.Panel application:



This roof panel can be widely used in food, medicine, electronics,animal husbandry and other industries.The market has broad prospects for development.



4.Panel details video:

We have products video to show you more details.



5.Why us?



 Import advanced production equipment:

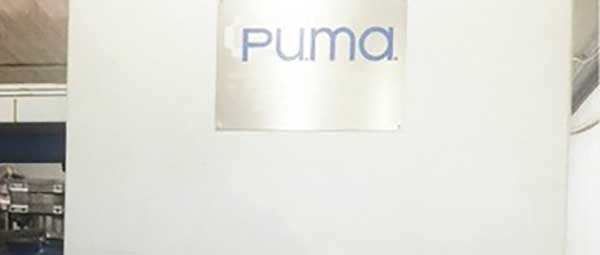

02-insulated-roof-panels-equipment

Double track mainframe forming system with advanced production line introduced from Europe,and the fully automatic packaging system developed by ourselves.


 Various coating types for choices:

We have PE, SMP, HDP, PVDF coating types for your choices,to meet up your project requirement.


 Different overlapping ways for choices & panel long service life:

Dark nail lap joint, hidden type rivet lap joint, tongue-and-groove lap joint,etc.You can choose which type is suitable for your projects.No matter in the ordinary environment,or in acid rain erosion,or high freezing environment,our panel has strong adaptability and resistance, and the service life can be more than 50 years.


☆ Our metal products suppliers list:

03 Polyurethane cold room panels pricelist

Our strategic cooperation brands are Bluescope, Bao-steel, Shougang steel, Guanzhou steel, Yieh Phui steel,Xinyu steel,etc.


☆ Our high quality black and white material products suppliers list:

04 PUR sandwich panels wholesale factory

Our polyurethane core material strategic cooperation brands are D·BASF, Huntsman, WANHUA, etc.
