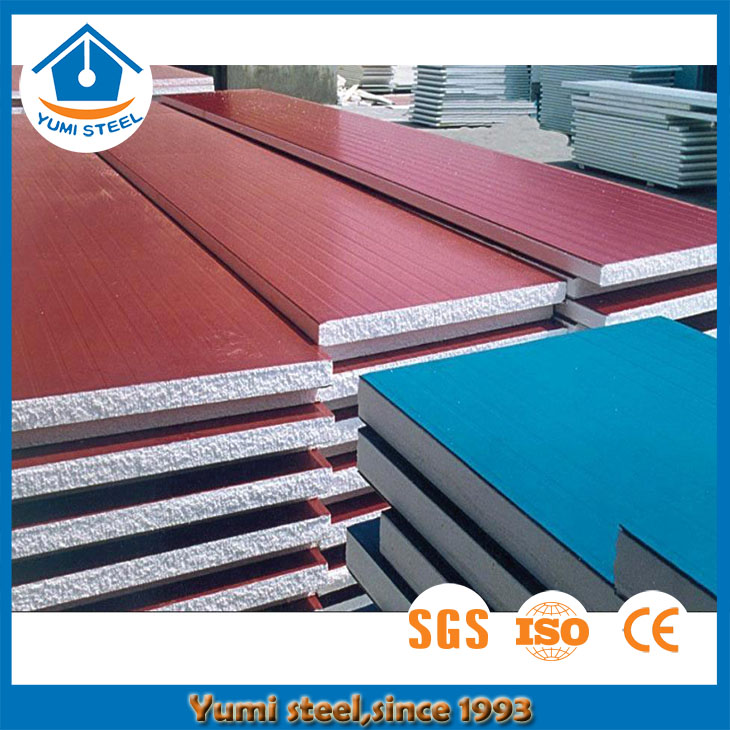

50/70/100/150/200 Thickness EPS Sandwich Panel With Color Steel Sheet

EPS sandwich panel is mainly use in: insulation/dry trucks, large-span structural roofs, wall surfaces, thermal insulation (or fireproof) plants, clean room, cold room, high-end combination houses, container houses, etc.
  • 950/960mm

  • Introduction of EPS sandwich panel:

The inner and outer sides are colored steel plates, and the core layer of polystyrene foam is formed by high pressure composite of German vacuum technology. The surface of the sandwich panel is smooth and clean, and the dirt can be easily removed. The entire panel is brightly colored and has excellent gloss retention. There is a layer of excellent gel coat on the surface of the glass steel plate. It has good chemical stability to the atmosphere, water and general concentration of acid, alkali, salt and other media. It has high surface finish, excellent gloss retention, no discoloration, corrosion resistance and protection. Light and anti-aging.

Wall panel:


Roofing panel:


  • Specifications of EPS sandwich panel:

Panel effective width: 950 mm for wall/960mm for roof
Steel sheet thickness: 0.40 ~ 0.70 mm
Panel thickness: 35/40/50/75/100/150/200/250 mm
EPS density: 8 ~ 20 KG/M³
Color: As per RAL or customized
Coating: PE, SMP, HDP, PVDF.
Steel type: PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets
Length limitation: Max 5.9m for 20FT;
Max 11.9m for 40FT.
Installation accessories: Aluminum U channels,self screws, flashings, etc.

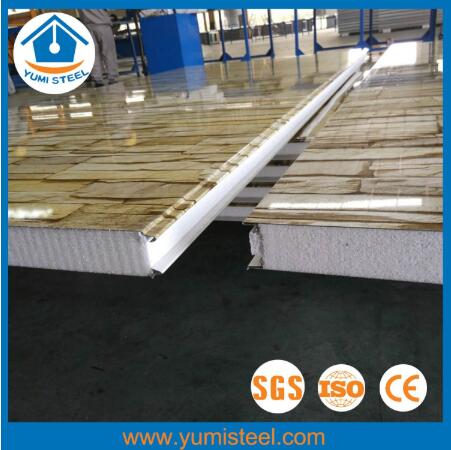

Wall panel:                                                       Roof panel:

QQ截图20190618140055    QQ截图20190719101808

  • Performance of EPS sandwich panel:

  1. Heat insulation,

  2. Light weight,

  3. Various colors: white, blue, grey, red, yellow,green, purple, black, etc.

  4. Long life,

  5. Waterproof,

  6. Sound insulation,

  7. Best price,

  8. Easu to install.
