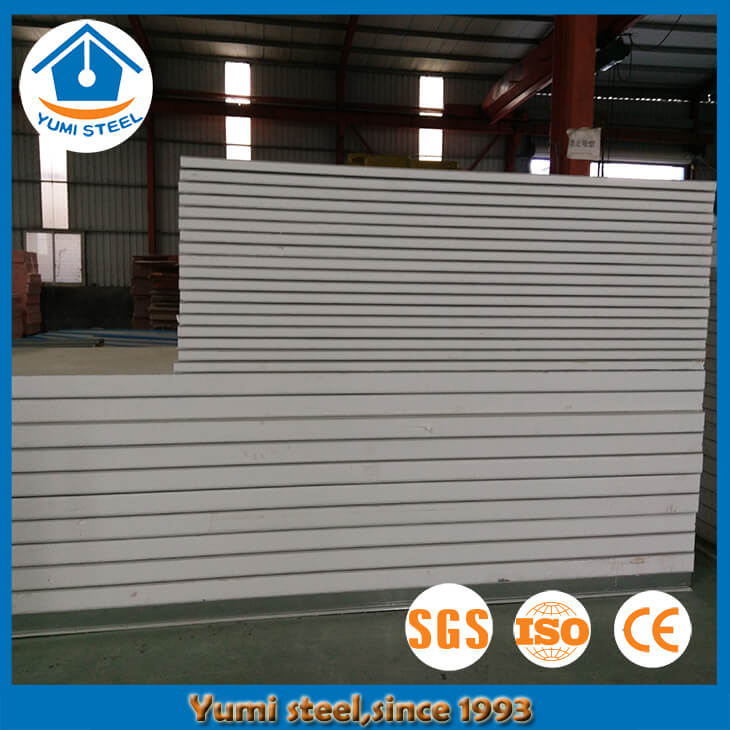

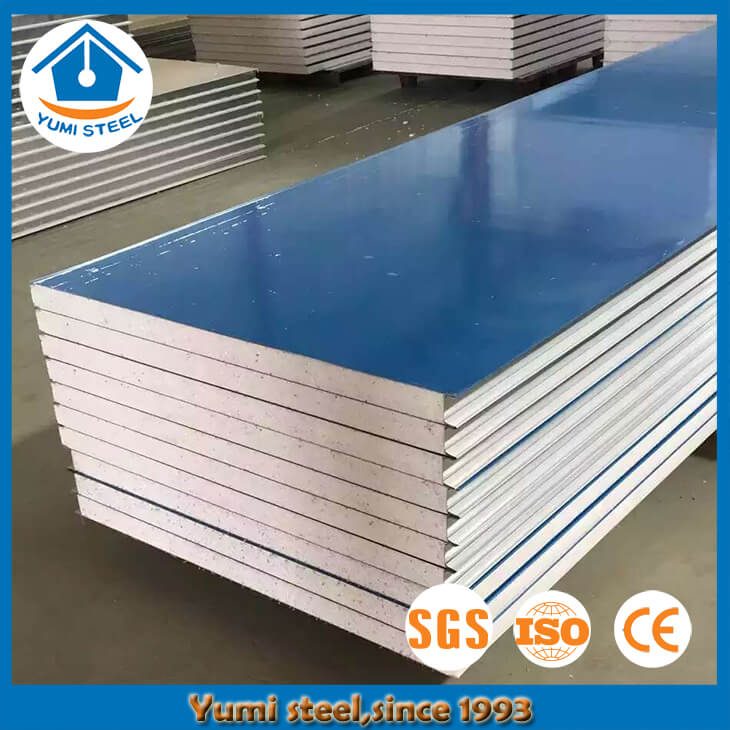

50mm EPS Insulated Steel Sandwich Wall Panels

Foam sandwich panels for wall,is lightweight and economical construction material.We manufactured foam sandwich panels since 1993,we also have CE,SGS,ISO certificate for wall panels,to ensure product quality.
Color as per RAL,MOQ:500M².
Availability:
Quantity:
  • 950/1150

  • Yumi steel

  • 72104900

1. Wall sandwich panels introduction:

50mm EPS sandwich wall panels is regular used as partition,its lightweight and easily to be lifted and installed,and popularly used in some steel buildings,like temporary offices at construction site,economical perfab container houses,etc.Also the price of wall EPS panels is very economical,which makes it widely used for sanctuary.


2. EPS insulated wall panel joint ways:

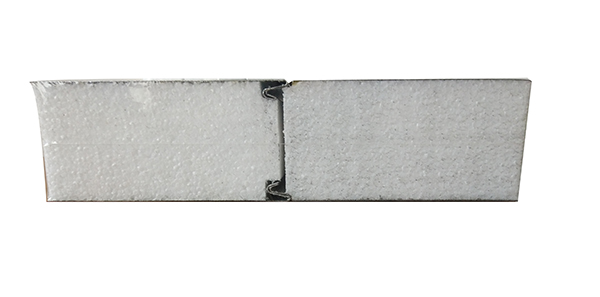

A) Common type:

There will a little bit space during the jointed of foam wall insulated panels,but this type is with steel latice strips,which could make the panel strength more better.At the same time,the price of this insulated panels is much more competitive.

B) Z lock type:

This kind of panel joint way is popular in Australia,it reduce the steel latice strips and no space joint way,which makes it more people would like to use this type.

There are two different kinds of joint ways for 50mm EPS wall insulated panels,customers could choose the way they like.


3. Panel Material & Specs description:


Product name:

50mm EPS wall sandwich panels

Steel sheet description:

1,Range:0.30-0.70mm;
2,Steel band:Bao-steel/Guanzhou steel/Xinyu steel,etc;
3,Top coating:20-25μm,bottom coating:7-10μm
4,Coating type:PE/PVDF/SMP,etc.
5,Steel material choice:PPGI/PPGL

EPS


Other thickness:

25/75/100/150/200mm

Density:

8-20KG/M³

Effective width:

950/1150mm

Regular color:

White grey/Sea blue/DK grey

Special color:

As per RAL swatches or customized

Length:

According to container size,we advise max 5800mm for 20FT container,and 11800mm for 40FT container.

Fire resistant level:

B1 level,according to GB/T 23932-2009

Installation accessories:

U channels,self screws,expanded bolts,flashings,etc.


4. Panel application area:


·Industrial buildings:wall,partition;

·Commercial buildings:side wall,partition;

·Warehouse/Godown:wall,partition;

·Farm house:Decorative siding panels;

·Poultry farm:Wall panels;

·Dairy industry:Wall panels.


5. Wall panel installation notes:

1) Wall insulated panel packages must be unloaded near installation site,so that it could avoid additional relocation of wall panels.;

2) EPS panel packages should be stacked with male joint towards the building,in order to avoid additional turning of panels,when installation;

3) EPS wall sandwich panels should be lifted from the package,it is not allowed to push or pull them,because there will have quality problem caused by human push or pull.

4) Please dont place any other loads or objects on wall panel packages;

5) Wall insulated panels are installed having regard to producer’s recommendations and in accordance with installation drawings.


6. Packing&Container loading:

All sandwich panels from Yumi,we will all use plastic film to protect the surface of sandwich panels.And this plastic film could also protect panels from shacking,during shipping.When loading,we will protect the surface wont be broken,after all panels loaded,we will also put some foam in the space between two rows of sandwich panels to avoid strong shaking,when shipping.

If you have any special requirement about packing,please feel free to contact and discuss with us.


7. Container loading quantity reference:

Container type

Max Length(M)

Loading quantity(M)

Loading quantity(M²)

20FT

5.8

533.6

506.92

40FT

11.8

1180

1121

Note:1,This calculation is based on max length;
    2,We could also accept other special container type,like 45HQ;
    3,This is the loading quantity reference for 50mm wall sandwich panels.


8. Panel Delivery:


All deliveries(unless indicated otherwise) are by sea transport to customer appointed port.If some special requirement,like DDP service,please indicate the address in details,so that we will offer you exact shipping cost details.Off-loading is the responsibility of the client.If customers have any doubt of off-loading problem,please feel free to contact us for details,thank you.


9. Inquiry:

Any new inquiry,please feel free to send us e-mail to admin@yumisteel.com .We will reply you as soon as we find your e-mail,thank you.

Or if you dont like mail contact,please send us message by following phone NO. +86-13559086380/15860744964,both phone NO. has whatsapp/ wechat/ linkedin/ skype.
