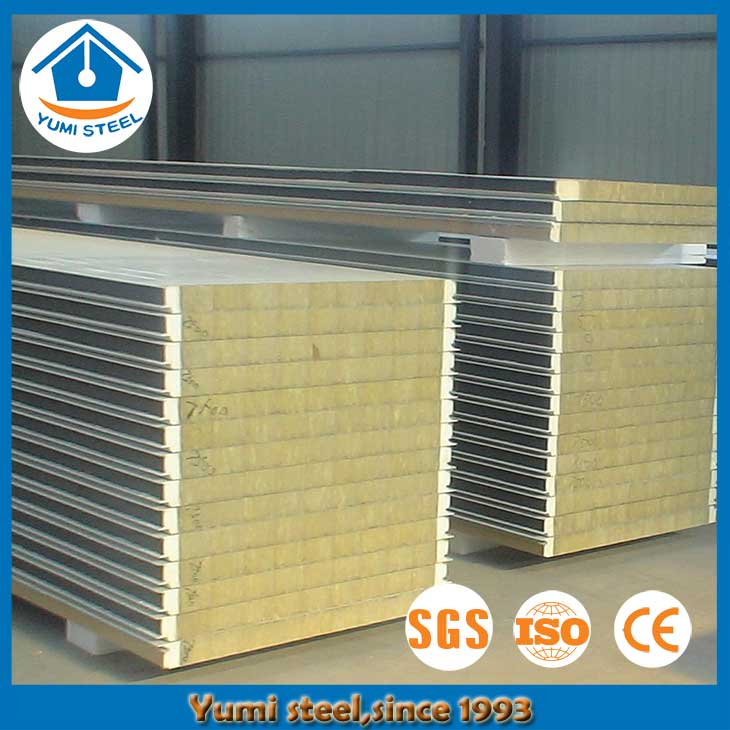

50mm Fireproof PU Sealing Rockwool Wall Sandwich Panels

Rock wool sandwich panels with polyurethane sealing end,this can improve the panel strength and waterproof performance. MOQ:500M².
Availability:
Quantity:
  • 920-1120/1000

  • Yumi steel

  • 72104900

50mm fireproof PU sealing rockwool wall sandwich panels


1.Wall sandwich panel types:



 Type 01:

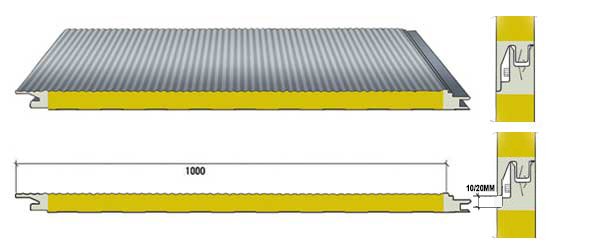

01-panel-rockwool-model-type

Panel model NO. :

YM1000

Steel sheet thickness :

0.40-0.70mm

Steel type :

PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets

Core material density :

PU: 40 KG/M³ (± 2KG/M³)
Rockwool: 110 ~ 150 KG/M³

Effective width :

1000 mm

Regular color :

White grey, Sea blue, Sliver grey, Dk grey, Iron grey

Special color :

Could be customized, but better to offer RAL color swatches

Length :

Max 5.9 meters for 20FT container;

Max 11.9 meters for 40FT container.

Fire resistant level :

A1

Joint type :

Hidden screws,Horizontal or vertical installation,
Can be with 10 mm or 20 mm decorative seam



Type 02:

02-rockwool-wall-panels-factory-price

Panel model NO. :

YM920-1120

Steel sheet thickness :

0.40-0.70mm

Steel type :

PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets

Core material density :

PU: 40 KG/M³ (± 2KG/M³)
Rockwool: 110 ~ 150 KG/M³

Effective width :

920/ 1000/ 1120mm

Regular color :

White grey, Sea blue, Sliver grey, Dk grey, Iron grey

Special color :

Could be customized, but better to offer RAL color swatches

Length :

Max 5.9 meters for 20FT container;

Max 11.9 meters for 40FT container.

Fire resistant level :

A1

Joint type :

Overlap joint,Horizontal or vertical installation



2.Wall sandwich panels material description:



Surface sheets:


PPGI / PPGL steel sheets:

It’s prepainted galvanized or alu-zinc steel sheets and it can have various color for choices.To adjust different kinds of environments,you can choose the related coating types.Here are PE, SMP, HDP, PVDF coatings for choices.You can also refer to our company news for coating type instructions.Thickness range: 0.40 - 0.70 mm.


Aluminum sheets:

We can also make the surface sheets with color aluminum sheets,and it can also have various colors for choices,too.And rust prevention performance is much better than PPGI/PPGL steel sheets.Thickness range: 0.60 - 1.20 mm.


Stainless steel sheets:

Usually customer only choose one side with 304 stainless steels.Stainless steel sheets are very suitable for the inside environment with high humidity,for example slaughter plant.And we advise to make corrugated ribs on surface sheets to avoid to much shinning by stainless steel sheet.Thickness range: 0.40 - 0.60 mm.


Core material:


Sealing end:PUR/PIR

04 PUR sandwich panels wholesale factory

It can be PUR or PIR material on the sealing end.Our PUR,PIR material suppliers are top ranked in China,in this way,we can make sure good quality on panels.


Rockwool:

We require at least choose rockwool density in 110 KG/M³,to make sure panel in good strength.



3.Panel features:



High level fireproof performance;

☆ Waterproof performance is highly improved by polyurethane sealing end;

Good acoustic performance;

Easy installation;

In line with aesthetic design.



4.Panel applications:


Large steel structures (industrial plants, warehouses, substations);

Steel structure office (factory office, administrative office);

Livestock facilities(poultry house) and other agricultural facilities (barns, stores,farms).



5.Packing & Loading:


 Packing:


Sandwich panels will be sealed with PVC film to protect the surface steel sheets from damage;

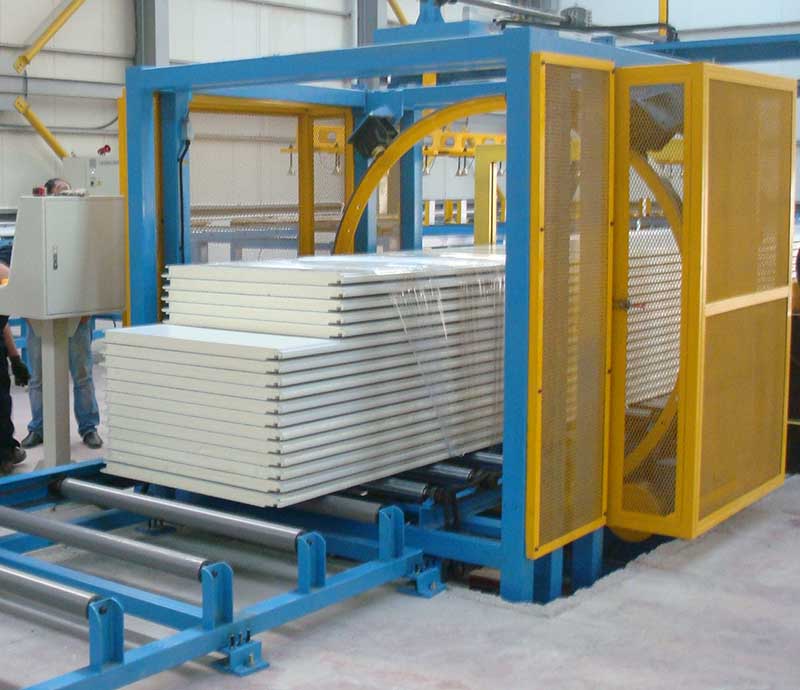

Using our PU sandwich panels packing machine,and packing with nylon to make panels in suitable quantity and bundles;

03 PU sandwich panels packing

After finishing the packing,we will stack them in neat and dry place,also will put sleeper or foam as support,to avoid any water on the groud to break the panels;

04 metal sandwich panels stacking

 Loading:


The delivery time for Yumi steel sandwich panels is depending on seasons and thickness of panels;

Each delivery is depending on where to deliver,if it’s for domestic market,it will be transported by truck.If it’s for foreign market,panels will be loaded in containers and delivered;

Loading and carrying surfaces in trucks or containers must be clean and dry. No nails or other sharp objects are allowed to be appeared in truck or containers. If any accessories,which is considering as protruding objects,then they have to be properly secured (should be packed with wooden blocks or waste foam), to avoid damage to the panels.
