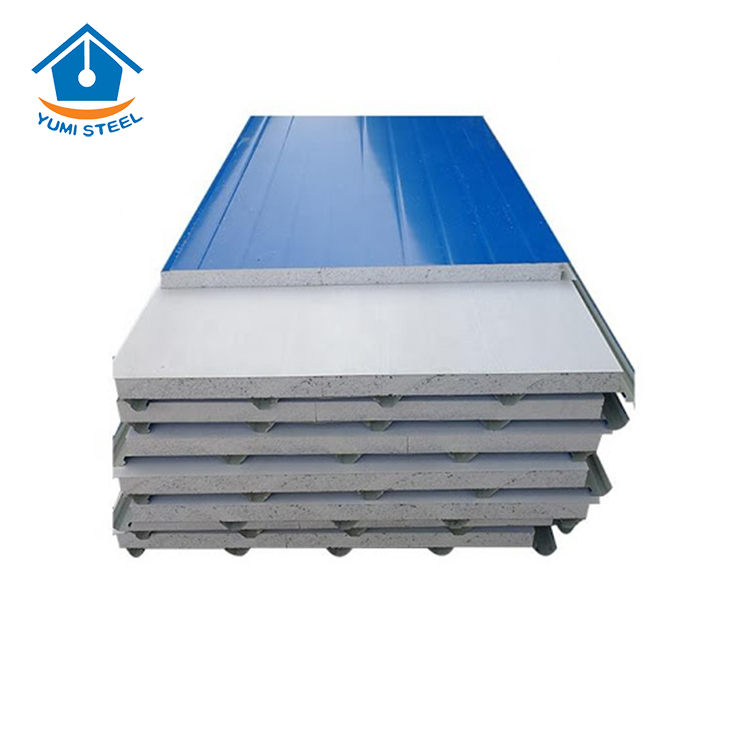

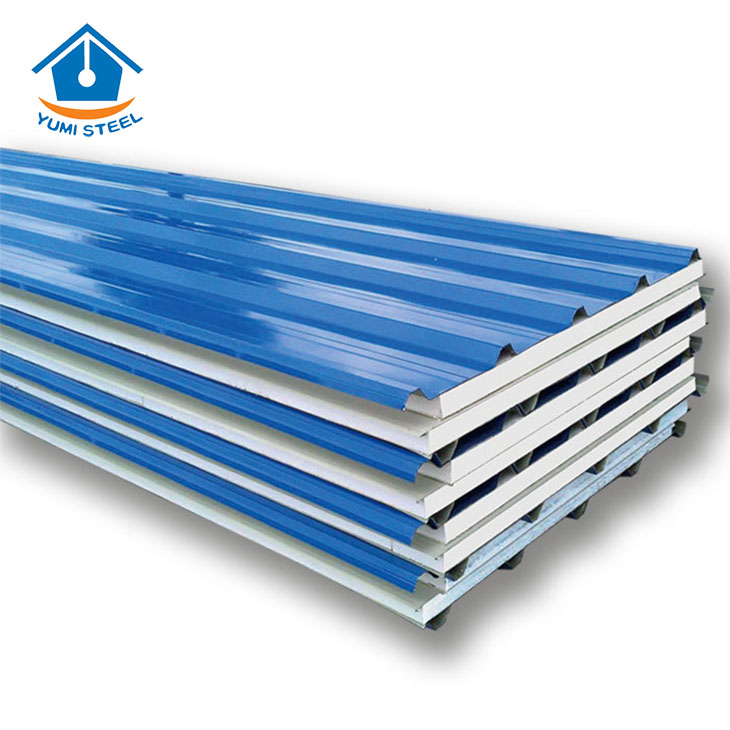

50mm Light Weight Eps sandwich Roof Panel For House

A sandwich panel is one structure made of three layers of material: low density core inserted material in between two relatively thin steel skin layers.
Availability:
Quantity:
  • 1000

  • Yumi

Characteristics :

  Beautiful appearance, bright color and good overall effect. It integrates load-bearing, heat preservation, fire protection and waterproofing, and does not require secondary decoration. It is a wide range of uses, especially for temporary facilities on construction sites such as offices, warehouses, walls, etc. , It also reflects the civilized construction of modern construction sites, especially in terms of rapid installation and use, in terms of assembly and disassembly, and material turnover and reuse index, it has obvious advantages. It will greatly reduce the cost of temporary facilities on construction sites. Indispensable new lightweight building materials.


Application

The foam sandwich panel has excellent properties such as softness, bending resistance, cold resistance, heat resistance, flame retardant, waterproof, low thermal conductivity, shock absorption, and sound absorption. It can be widely used in central air conditioning, construction, chemical, pharmaceutical, textile and other industries, as well as drinking water and sewage pipes, hot water pipes, transportation containers, pumps and valve parts, medical appliance parts, seals, cutting boards, sliding profiles . It is widely used in chemical, machinery, electric power, clothing, packaging, food and other industries.

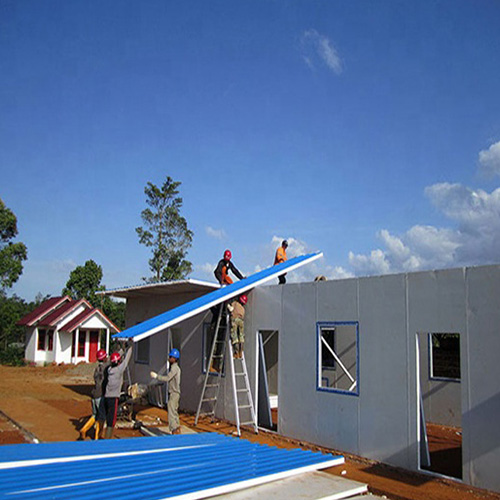

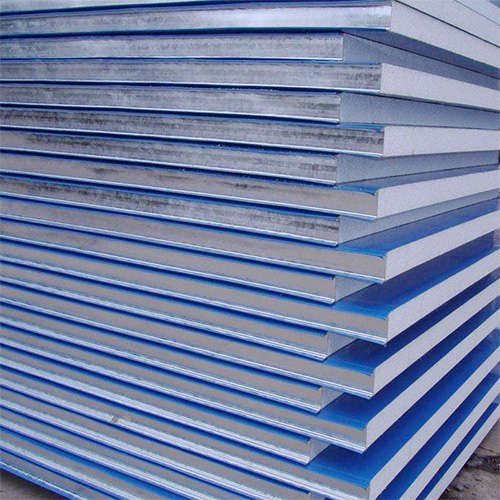

4-02 4-03



 Specification

Model

75mm Light Weight Eps sandwich Roof Panel For House

Brand

Yumi

Effective width(Wall )

950mm (1150mm)

Thickness

Color steel sheet: 0.3-0.7mm
EPS : 75mm (50mm 100mm 150mm 200mm 250mm )

Density

8-20KG/M³

Materials

EPS core material, Color steel sheet

Structure

Upper and lower layer: Color steel sheet
Middle: EPS core material

Steel sheet color

As RAL

Lifetime

15~20 years

Available length

20FT container: <5.95m
40FT container: < 11.95m


Packing & Delivery

PVC on both sides to protect the roof panel surfaces;

Packed with kraft paper to protect the panel ends;

Put EPS foam on the each space to keep the panels from squeezing each other.

if you have special requirement please feel free to discuss with us.This is to make us improved and protect your goods well

Delivery:

Delivery time for regular colors,coating types and thickness:7-10 days;

Delivery time for special colors,coating types and thickness:15-25 days;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
