| Quantity: | |
|---|---|
1000
Yumi steel
72104900

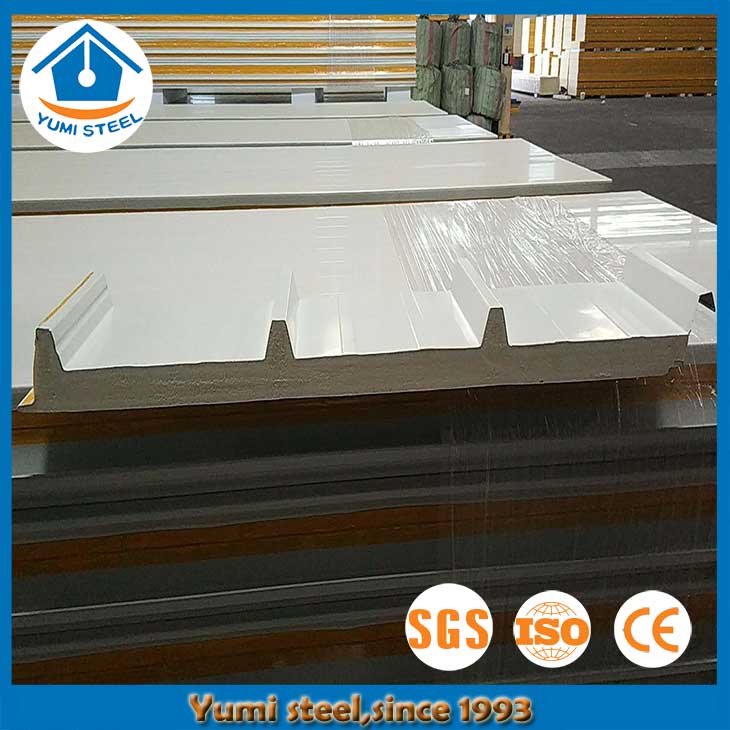

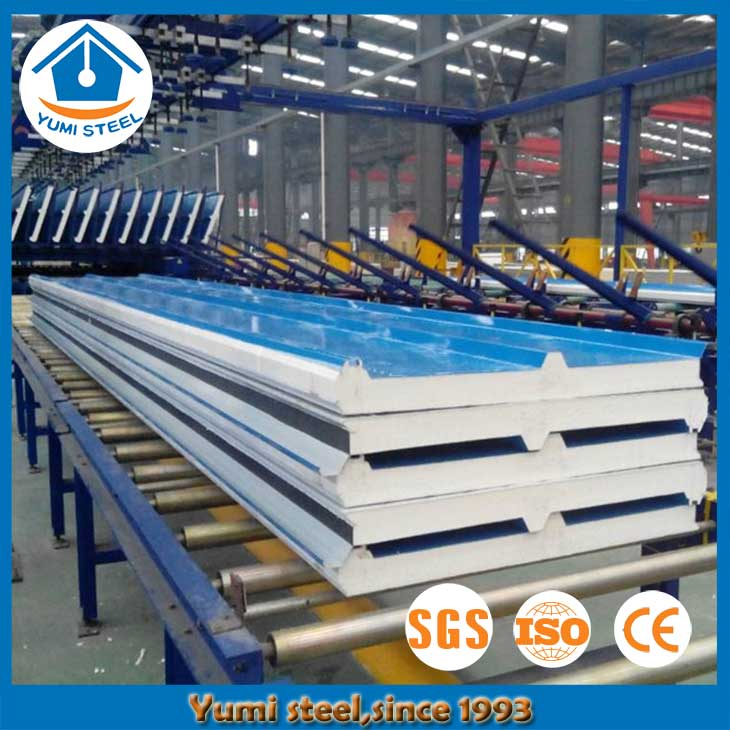

1.Roof sandwich panels offer:
☆ Hidden joint roof panels:
Rib height: 39mm
Rib distance: 500mm
Panel effective width: 1000mm
Thickness: 50/ 60/ 75/ 100/ 150/ 200mm

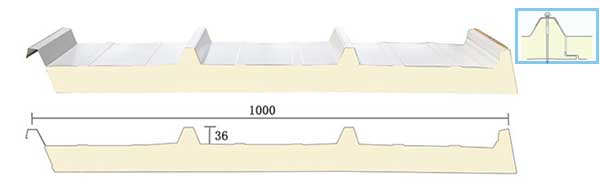

☆ Visible joint (Overlap) roof panels:
Rib height: 36mm
Rib distance: 333mm
Panel effective width: 1000mm
Thickness: 50/ 60/ 75/ 100/ 120/ 150/ 200mm
2.Metal roof panels material description:
Insulation core material : | PUR (Polyurethane), PIR (Polyisocyanurate) |
Thermal Conductivity : | λPUR = 0.023 W/mK1 & λPIR =0.021 W/mK1 |
Density : | 38 ~ 42 KG/M³ |
Steel sheet thickness : | 0.40 ~ 0.75 mm |
Stainless steel sheet thickness : | 0.40 ~ 0.70 mm |
Al-Mg-Mn alloy metal thickness : | 0.70 ~1.20 mm |
3.Sandwich panel roof applications:
☆ Industrial buildings(steel factory,warehouse,cold storage room,food industry,etc);
☆ Commercial buildings(office,logistic center,etc.);
☆ Residential buildings(lightweight steel villas,storage sheds,etc).
4.Sandwich panel roof features:
√ Best insulation polyurethane material;
√ High fireproof level;
√ Excellent waterproof performance;
√ High panel strength;
√ Easy installation and construction.
5.Metal panel basic technical data:
☆ Property:
Compressive strength at 10% deformation (kg/cm²) | 2.1 |
Bending strength (kg/cm²) | 4 |
Tensile strength (kg/cm²) | 3.7 |
Adhesive strenth (kg/cm²)- foam to steel | 2.9 |
Water absorption (Volume %) | 0.2% at 100%RH |
Closed cell content (%) | 92 ~ 95% |
Vapor permeability at 90% (RH) & 38℃ (Gms/Hr.m²) | 0.12 |
Fireproof level | PIR: B1; PUR: B2 |
☆ Span table:
Panel thickness | Panel weight | Load distribution | ||||||||||||
Single span | Continuous span | |||||||||||||
P=kg/m² | 60 | 80 | 100 | 120 | 150 | 200 | 60 | 80 | 100 | 120 | 150 | 200 | ||
50 | 11.85 | L= | 4606 | 4070 | 3680 | 3378 | 3027 | 2602 | 5158 | 4558 | 4212 | 3783 | 3390 | 3914 |
Note:These data was based on steel sheet 0.60/0.50mm,PU density 40 kg/m³. | ||||||||||||||
6.Insulated roof panel packing & loading:
☆ Packing:
→ Sandwich panels will be sealed with PVC film to protect the surface steel sheets from damage;
→ Using our PU sandwich panels packing machine,and packing with nylon to make panels in suitable quantity and bundles;
→ After finishing the packing,we will stack them in neat and dry place,also will put sleeper or foam as support,to avoid any water on the groud to break the panels;
☆ Loading:
→ The delivery time for Yumi steel sandwich panels is depending on seasons and thickness of panels;
→ Each delivery is depending on where to deliver,if it’s for domestic market,it will be transported by truck.If it’s for foreign market,panels will be loaded in containers and delivered;
→ Loading and carrying surfaces in trucks or containers must be clean and dry. No nails or other sharp objects are allowed to be appeared in truck or containers. If any accessories,which is considering as protruding objects,then they have to be properly secured (should be packed with wooden blocks or waste foam), to avoid damage to the panels.
1.Roof sandwich panels offer:
☆ Hidden joint roof panels:
Rib height: 39mm
Rib distance: 500mm
Panel effective width: 1000mm
Thickness: 50/ 60/ 75/ 100/ 150/ 200mm
☆ Visible joint (Overlap) roof panels:
Rib height: 36mm
Rib distance: 333mm
Panel effective width: 1000mm
Thickness: 50/ 60/ 75/ 100/ 120/ 150/ 200mm
2.Metal roof panels material description:
Insulation core material : | PUR (Polyurethane), PIR (Polyisocyanurate) |
Thermal Conductivity : | λPUR = 0.023 W/mK1 & λPIR =0.021 W/mK1 |
Density : | 38 ~ 42 KG/M³ |
Steel sheet thickness : | 0.40 ~ 0.75 mm |
Stainless steel sheet thickness : | 0.40 ~ 0.70 mm |
Al-Mg-Mn alloy metal thickness : | 0.70 ~1.20 mm |
3.Sandwich panel roof applications:
☆ Industrial buildings(steel factory,warehouse,cold storage room,food industry,etc);
☆ Commercial buildings(office,logistic center,etc.);
☆ Residential buildings(lightweight steel villas,storage sheds,etc).
4.Sandwich panel roof features:
√ Best insulation polyurethane material;
√ High fireproof level;
√ Excellent waterproof performance;
√ High panel strength;
√ Easy installation and construction.
5.Metal panel basic technical data:
☆ Property:
Compressive strength at 10% deformation (kg/cm²) | 2.1 |
Bending strength (kg/cm²) | 4 |
Tensile strength (kg/cm²) | 3.7 |
Adhesive strenth (kg/cm²)- foam to steel | 2.9 |
Water absorption (Volume %) | 0.2% at 100%RH |
Closed cell content (%) | 92 ~ 95% |
Vapor permeability at 90% (RH) & 38℃ (Gms/Hr.m²) | 0.12 |
Fireproof level | PIR: B1; PUR: B2 |
☆ Span table:
Panel thickness | Panel weight | Load distribution | ||||||||||||
Single span | Continuous span | |||||||||||||
P=kg/m² | 60 | 80 | 100 | 120 | 150 | 200 | 60 | 80 | 100 | 120 | 150 | 200 | ||
50 | 11.85 | L= | 4606 | 4070 | 3680 | 3378 | 3027 | 2602 | 5158 | 4558 | 4212 | 3783 | 3390 | 3914 |
Note:These data was based on steel sheet 0.60/0.50mm,PU density 40 kg/m³. | ||||||||||||||
6.Insulated roof panel packing & loading:
☆ Packing:
→ Sandwich panels will be sealed with PVC film to protect the surface steel sheets from damage;
→ Using our PU sandwich panels packing machine,and packing with nylon to make panels in suitable quantity and bundles;
→ After finishing the packing,we will stack them in neat and dry place,also will put sleeper or foam as support,to avoid any water on the groud to break the panels;
☆ Loading:
→ The delivery time for Yumi steel sandwich panels is depending on seasons and thickness of panels;
→ Each delivery is depending on where to deliver,if it’s for domestic market,it will be transported by truck.If it’s for foreign market,panels will be loaded in containers and delivered;
→ Loading and carrying surfaces in trucks or containers must be clean and dry. No nails or other sharp objects are allowed to be appeared in truck or containers. If any accessories,which is considering as protruding objects,then they have to be properly secured (should be packed with wooden blocks or waste foam), to avoid damage to the panels.
