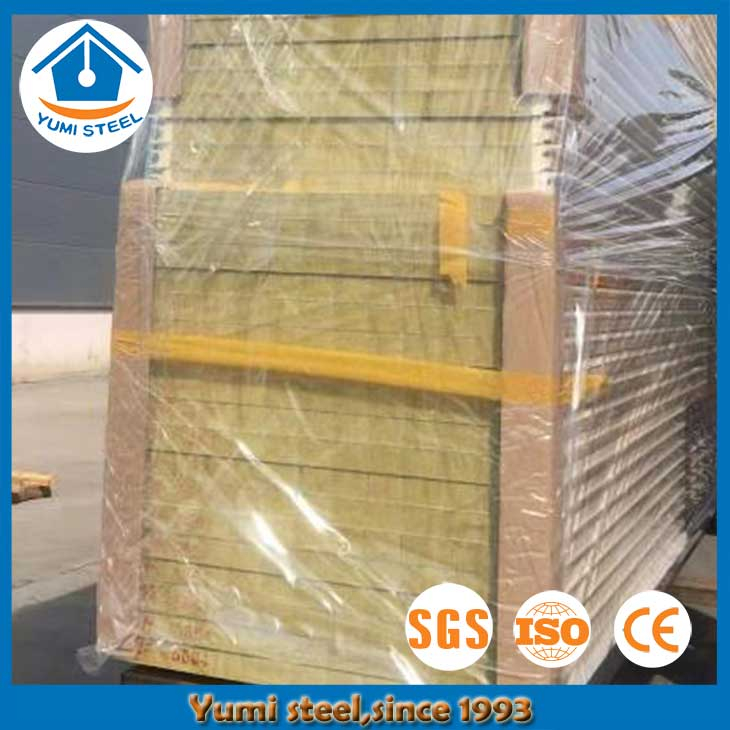

60mm Concealed Joint Soundproof Rockwool Sandwich Panels Wall

60mm thick soundproof rockwool sandwich panels can reach 36db of airborne sound insulation performance.
  • 1000

  • Yumi steel

  • 72104900

1.Soundproof wall panels advantages:

☆ A1 level fireproof function:

The fire resistance rating of rockwool material is A1,and can reach 240mins fire resistance.

☆ Excellent sound insulation:

60mm thick PU sealing rockwool wall panels can reach 36dB level.

☆ Good waterproof performance:

With PU sealing end,it improve the waterproof performance of rockwool panels.


2.Soundproof wall panels type:

Hidden screws joint type:


Panel effective width: 1000 mm

Thickness: 50/ 60/ 75/ 100/ 150/ 200 mm

This panel type can be with 1/2cm decorative seam or without decorative,and concealed joint can ensure the the wall panels in good waterproof status.


3.Sandwich panel wall applications:

The practical application of soundproof rock wool sandwich panel is pump house, generator set, air conditioner room, boiler room, cooling tower, air compressor room, power plants,etc.Sound insulation rockwool panels can be used for all kinds of workshops and machinery.


4.Wall panels soundproof test report:

60mm thick soundproof rockwool sandwich panels can reach 36db of airborne sound insulation performance.If you have other airborne sound insulation requirement,please check with us for more details.



5.Other notes:

1)After the materials arrive at site,please check the quantity of each item carefully and see if any transport damage happened,according to the delivery list. If you found out any missing or panel damage,please check if it is indicated on the invoice or not,also immediately notify the relevant service department of Yumi steel.


2)The small piece of material,for example fasteners,connecting pieces and sealants should be placed in safe place,it’s better to be locked,in case of theft.


3)Please don’t use the dirty gloves to handle and install wall panels and edge trims(flashings),especially galvalume material and edge trims,in order to avoid the dirty appeared on wall panels and edge trims surface,and it’s hard to clear and will have effects on aesthetic.


4)All the parts that need sealants should wipe the attachment surface clean,to make sure there is good adhesion on color steel.The glue joint should be full and dense to avoid water leakage.


5)The PVC films on panels,please peel it off within 3 ~ 4 months,after shipment.Otherwise it will have chemical reaction and make it very difficult to peel off.


6)During the installation process, wall panel maybe damaged by collision and friction with the scaffold, column, brick wall,etc.So please be careful about this point.


7)During the on-site cutting process of wall panel, the bottom surface of the cutting machine should not be in direct contact with the color steel surface.It’s best padded with thin plywood on the panel,then cut.The burrs on the cutting end need to be removed and installed in time.


8)Iron scraps are generated after cutting and drilling holes,and these iron filings on panel surface need to be cleaned.These iron scraps must be cleaned up in time and must not be left overnight.Iron filings can rust in a humid environment. The rust spots are verified to be removed after the surface of the board is formed, and the paint surface or even the substrate may be damaged for a long time.Similarly, other cut-off color steel heads, iron bars pulled by aluminum alloy steel nails, etc. should be cleaned up in time.


9)After the daily installation work is completed, all the debris left on the site must be cleaned up.
