1000mm
Yumi
Feature
3 ribs hidden screws
■ The screws are hidden, with excellent water resistance, which prevents the screws from corrosion and at the same time avoids the occurrence of cold bridges.
■ The design of three wave crests with a height of 40mm improves the bearing capacity of the roof panel, reduces the usage of roof purlins, enhances the load capacity, and has the effect of balancing water flow.
Application
Food quick freezing processing and cold storage (aquatic products, poultry, poultry, prepared food, vegetables, fruits), meat production plants, food processing plants, assembled cold storage, seed storage, biological and medical products, and dairy products storage.
Specification

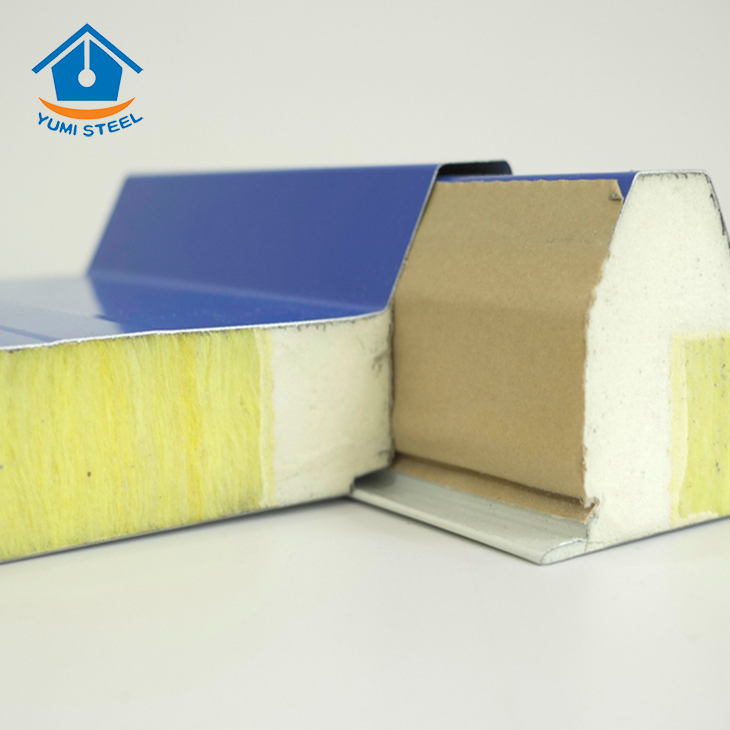

Product name | 75mm PU sandwich roof panel | Remark |
Effective width | 1000 mm | |
Panel thickness | 75 mm | Other thickness for roof: |
40, 50, 60, 100, 120, 150, 200 mm | ||
Surface sheets | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets/ Stainless steel | |
Steel thickness | 0.40 - 0.70 mm | |
Aluminum sheets/ Al-Mg-Mn alloy metal sheets | 0.70 - 1.20 mm | |
Stainless steel | 0.40 - 0.60 mm | |
Core material density | 40 - 42 KG/M3 | |
Regular panel color | White grey, Sea blue. Sliver grey, Dk grey, Iron grey | Color could be customized too. |
Coating type choice | PE/ PVDF/ HDP/SMP, etc. | |
Available length | 20FT container: < 5.95m | |
lap method | Non-hidden screws joint |
Packing & Delivery
PVC on both sides to protect the roof panel surfaces;
Packed with kraft paper to protect the panel ends;
Put EPS foam on the each space to keep the panels from squeezing each other.
if you have special requirement please feel free to discuss with us.This is to make us improved and protect your goods well
Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:15-25 days;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
