| Quantity: | |
|---|---|
950/1150
Yumi steel
72104900
1.Panel types instruction:

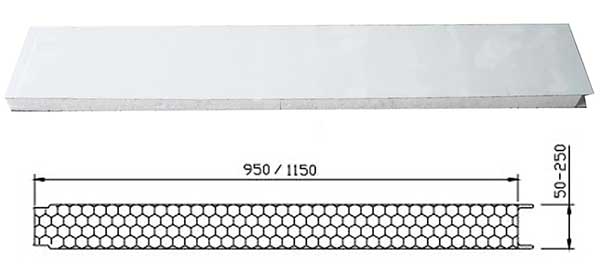

☆ 950 / 1150 mm EPS sandwich wall panels:
This metal panels can be connected with or without gap.The wall sandwich panels joint with gap is with two steel strip on two panel sides,this is to make sure the panel strength.The one without gap is with one side steel strip,but it can improve the soundproof performance.

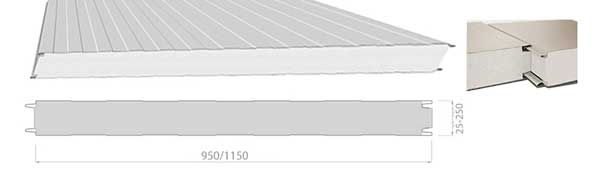

☆ Z lock 950 / 1150 mm EPS sandwich wall panels:
The Z lock type is stronger than the joint way mentioned above.Most of customer choose Z lock type insulated wall panels.
2.Panel basic specification:
Name: | 75mm EPS wall sanwich panels |
Steel sheet thickness: | 0.30-0.70mm |
Steel type: | PPGL, PPGI steel / Aluminum sheet / Stainless steel sheets |
Core material thickness: | 75 mm |
Core material density: | 8 ~ 20KG/M⊃3; |
Effective width: | 950mm or 1150mm |
Regular color: | White grey, Sea blue, Sliver grey, Dk grey, Iron grey |
Special color: | Could be customized, but better to offer RAL color swatches |
Length | Max 5.9 meters for 20FT container; |
Max 11.9 meters for 40FT container. | |
Fire resistant level: | A1 |

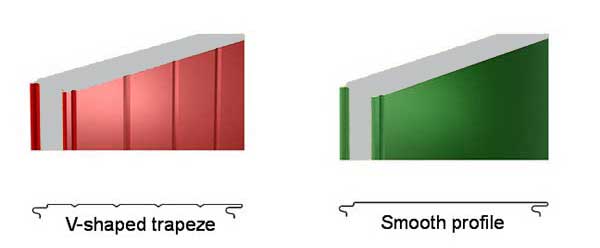

3.Panel rib types:
There are two types of surface profile can be done on EPS wall sandwich panels.One is V-shaped type and one is smooth flat type.Customers can choose the one is suitable for project,and both rib types are in same price.
4.Panel production site video:
Here to show you more details about our EPS sandwich wall panels.
5.Panel application:
·Industrial buildings:wall,partition;
·Commercial buildings:side wall,partition;
·Warehouse/Godown:wall,partition;
·Farm house:Decorative siding panels;
·Poultry farm:Wall panels;
·Dairy industry:Wall panels.
6.Panel packing & Loading:
All sandwich panels from Yumi,we will all use plastic film to protect the surface of sandwich panels.And this plastic film could also protect panels from shacking,during shipping.When loading,we will protect the surface won’t be broken,after all panels loaded,we will also put some foam in the space between two rows of sandwich panels to avoid strong shaking,when shipping.
If you have any special requirement about packing,please feel free to contact and discuss with us.
Also when you don’t know how to unload the panels,please feel free to contact us for unloading instruction.
7.Panel container loading quantity reference:
Container type | Max Length(M) | Loading quantity(M) | Loading quantity(M⊃2;) |
20FT | 5.9 | 354 | 336.3 |
40FT | 11.9 | 785.4 | 746.13 |
Note:1,This calculation is based on max length; 4,This is based 950 panel type. | |||
8.Panel inquiry:
Any inquiry,warmly welcome you to leave a message by our website.If you want to contact directly,we advise to send us email by admin@yumisteel.com or manager@yumisteel.com .Our sales team will reply you within 24 hours.
