H005
YUMI
Features:
☆Modular portable container house is designed according to specifications of shipping container exactly.
It is made of prefab light steel as house frame and sandwich panel for wall and roof, then facilitated with windows, doors, flooring, ceiling, and other additional accessories.
20ft portable container house specification: 6055mm*2438mm*2591mm
Customized dimension is available for large order quantity
☆ Our portable container houses are mostly used for house living and superior office, with flexible design to suit various needs, especially in following cases:
Short construction period and few workers,
Need temporary buildings ready in a short time,
Site constrains to prefab house,
Great fluctuation in number of workers during construction.
They are also widely applied to warehouse, storage, dormitory, kitchen, shower room, locker room, meeting room, classroom, command room, shop, kiosk, portable toilet, etc.
☆ More characteristics
Convenient and various transportation, can be transported as a shipping container, or flat packed.
Easily removed for short distance, can be relocated without disassembling.
Tough steel structure improve wind resistant, and seismic resistant.
Sandwich panel for wall and roof keep good insulation, soundproof, waterproof.
Flexible designs as per your preference.
Environment friendly. No waste to be discarded.
House parts can be separately according to your requirements.
Little requirements on ground base. Being tough and flat is OK.
Product details:
Material Item | Standard |
Structural steel properties | Not less than Q235 steel in GB/T 700, the allowable deviation of the thickness of the steel plate meets the requirements of GB / T3524-2005. |
Fiber cement slab for floor | Meet the requirements of JC / T 412.1-2006 high density non-asbestos fiber cement slab. |
Color steel sandwich panel for interior wall panel or ceiling panel | Complywith the requirements of GB / T12754-2006, the core material should be made of non-combustible materials |
Color steel plate for roof covering panel | Meet the requirements of GB / T 12754-2006, and the substrate coating is not lower than the requirement of corrosive environment for intermediate level |
Particleboard for interior wall panels or ceiling panels | Meet the requirements of GB / T 4897.3-2003 |
Galvanized steel sheet for bottom sealing plate | Meet the requirements of GB / T15675-2008. |
Insulation rockwool/glass wool | Meet the requirements of GB / T 11835-2007 |
Interior corner PVC profiles, skirting lines, door and window cover lines, etc. | Meet the requirements of GB / T 8814-2004. |
Performance level of ordinary fasteners for connecting corner posts and top and bottom corner pieces | Not lower than the requirements of level 4.8 in GB / T 3098.1-2010 and GB / T 3098.2-2000 |
Self-tapping screws | Meet the requirements of GB / T 15856.5 |
Blind Rivets | Meet the requirements of GB / T 12618.1 |
Welding of steel structures | There should be no undercuts, root shrinkage, crater cracks, slag inclusions on the surface, blowholes, false welds, missing welds, etc. |
PVC floor panels for floor decoration | Meet the requirements of GB / T 11982.1-2005 |

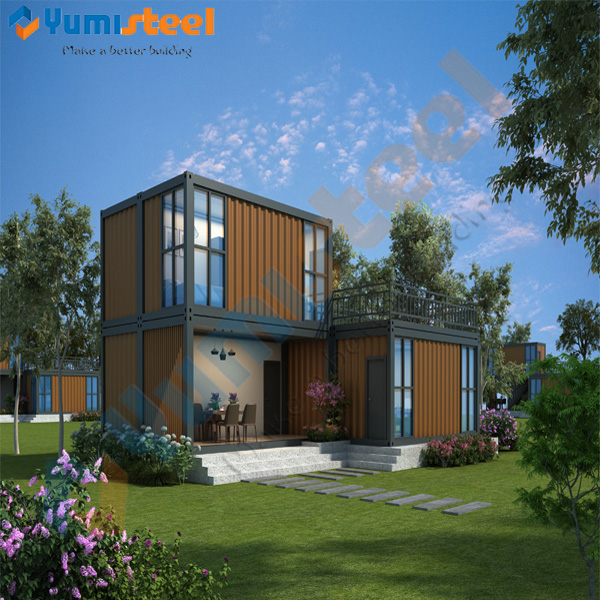

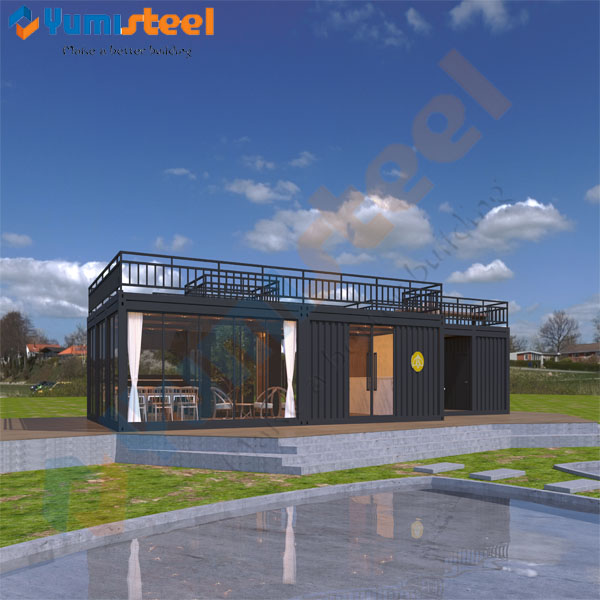

Similar Tiny Container House Display:
Our Service:
Xiamen Yumi New Material Technology Co.,Ltd.is a leading manufacturer for steel structural products,the product range is including insulated roof and wall sandwich panels,
corrugated steel roof and wall cladding ,steel floor decking,prefab building etc.
We have a main plant in 30000 square meters and over 2000 staffs.Our goal is to make a better world with our diligence and wisdom.
At present,our products have been exported to South America,Southeast Asia,Oceania.Africa.etc.We are trying to do more and more creative for our customers.
Own professional design team
This is meaning that if clients have his or her own requirement for the house floor plan,appearance,our design team will build a 3D model and render pictures for customers to have better understanding of the final product will be like.
Own professional installation team
We have technician with superior experience on installation who can help solve any problem during construcing.
Own dedicated container house production base
The construction area of our production base is 15,000sqm,15 welding platforms,130 sets output per day and 1,000 sets of various models are in stock,500 sets of stair guardrail are available.
For more details,please refer to the video at our website.
Catalogs for your choices
Our design team will design some models of different styles of building for customer choose.Any installation problem & requirement from our valued customers,we will do our best .
For more models,please find download page to have more information.
Packing & Delivery:
☆Packing:
If standard size,we can load max 15 sets of container.
☆Delivery:
Delivery time for regular designs and colors:7-10 days;
Delivery time for special designs and colors:15-20 days;
Delivery term:FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
