Aluminum Color Coated Steel Coil Use for Roof/wall System

PPGI Steel Coils (also called prepainted galvanized steel coils or color coated steel coils and prepainted steel coils) used largely in different industries.

Quantity:
  • N/A
  • YUMI
  • 92104900

Color coated steel coils introduction:

It is main pre-coated color onto galvanized steel coil which then called prepainted galvanized steel coil and simplified named as PPGI steel coil, and pre-coated color onto galvalume steel coil and then be simplified called as PPGL steel coil.


What is more, there have different pattern can be paint on the steel coils, I.E wood grain, marble grain, brick grain, flower grain, camouflage pattern,etc..

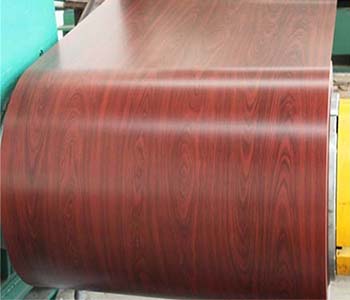

wood grain ppgi steel coils marble grain ppgi steel coils

brick grain ppgi flower grain steel coils


Galvanized steel coil specifications:

Product name:

PPGI coils

Base sheet:

Galvanized(Zinc coating)

Thickness range:

0.2-1.0mm

Width range:

900-1250mm

Coil weight:

3MT-10MT

Mass of coating:

40g/㎡-275g/㎡

Painting standard:

Primers:Epoxy,PU

Top Coating:

Polyester (PE),

Silicon Modified Polyester (SMP),

High-durability Polyester coating(HDP)

Poly Vinyl Di Flouride (PVDF)

Back Coating:Epoxy,Polyester, PU

Top Coating:

15μm - 30 μm

Back Coating:

7-10 μm

Color:

As per RAL color/Customer requirements.

Packing

Seaworthy packing


PPGI steel coil applications:

1. For wall/siding panel/sheet,

2. For roof panel/sheet,

3. For flooring system.

color coated steel coils for villa building

  brick grain steel coils for house building


Color coated steel sheet packing&loading:

  steel colis packing


Packing & Delivery:

 Packing:

Seaworthy packing standards:

1)Normal packing:

Packed with moisture-proof kraft paper.

2)Premium packing:

Packed with steel box.


Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
