YX25-205-820
Yumi steel
72104900
1. Product description:
1) Overview:
YX25-205-820 is one kind of trapezoidal shape steel claddings,which is with high tensile strength features.This metal sheets is suitable for roofing,walling and fencing.For customers require best price industrial use claddings,this is one good choice.
2) Material:
Material could be color coated steel coils( PPGL or PPGI ),as per different requirement,customer could also require galvanized / galvalume steel, stainless steel or aluminum alloy metal sheets for our model.
Regarding color steel coils,we could offer you different type of coating for selection.PE, SMP, HDP, PVDF, this four coating type,which is what we are usually using now.Welcome you to discuss with us for details.
3) Specification:
Model NO. | YX25-205-820 |
Modular width | 820 mm |
Feeding width | 1000 mm |
Rib height | 25 mm |
Rib distance | 205 mm |
Length | 20FT container: ≤ 5.85m |
4) Compliance:
All our steel corrugated sheets are based on testing in accordance with China GB standards(Q235/ Q345 ).
5) Regular color:
Our regular color White grey/ Silver grey/ White silver grey/ Iron grey/ Dark grey/ Sea blue.For other colorways,please offer us RAL color swatches,then we could follow it and make production.
RAL color reference website: https://www.ralcolor.com/
2. Product technical data:
1) Designs:
820mm is easily and convenient for handling and installation.In order to meet up ocean shipping standards,our length limitation is 5.85m for 20FT,and 11.85m for 40FT.Based on material feature,thickness for color steel coils or galvanized steel coils is 0.15-1.0mm.For stainess steel,thickness range is 0.40-0.80mm.Aluminum alloy metal sheets is 0.70 /0.80 /0.90/ 1.0mm.
2) Theoretical weight:
Theoretical weight for color coated corrugated steel sheets | ||||||||
Thickness(mm) | 0.15 | 0.20 | 0.30 | 0.40 | 0.50 | 0.60 | 0.70 | 0.80 |
Theoretical weight/meter | 1.18 | 1.57 | 2.36 | 3.14 | 3.93 | 4.71 | 5.50 | 6.28 |
Remark:Torenlance will be 0.15-0.35KG/M. | ||||||||
For other kind of material weight,please contact us for more,thank you.
3) Physical properties:
Standards | Q235 | Q345 |
Yield Strength (Mpa) | ≥235 | ≥345 |
Tensile Strength (Mpa) | 220 | 300 |
4) Span tables:
Maximum Recommended Spans (mm) | |||||
Span Type | Roof | Wall | |||
0.426mm | 0.476 mm | 0.376 mm | 0.426 mm | 0.476 mm | |
Single Span | 1170 | 1720 | 1750 | 2370 | 2800 |
End Span | 1420 | 1920 | 2260 | 2890 | 3200 |
Internal Span | 1950 | 2650 | 2520 | 3080 | 3300 |
For more technical data,please contact us,thank you.
3. Product Applications:
Using as roofing for light weight steel villas,steel factories,warhouses,etc.
Using as wall for steel buildings.
Using for small housing storage room,or parking shed.
Using as fencing for courtyard.
4. Product installation details:

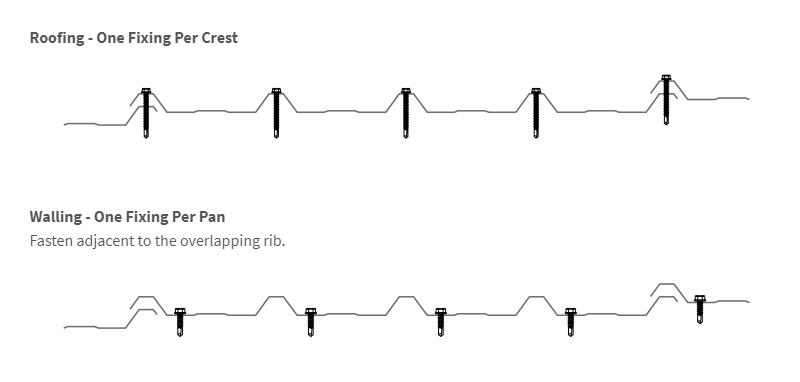

1) Screws position drawing reference:
2) Installation notes:
● Please wear gloves,when cutting or installing corrugated steel sheets;
● Make sure clean on gloves or hand,otherwise it will be easily mark on galvanized or galvalume or aluminum sheets;
● Using tin snips for cutting;
● If it’s long length,please use steel cutting blade or power nibbler to cut;
● Take care for end cutting and make it clean.
3) Sealant applying:
● Always apply a sealant bead along a continuous line along the centerline of the fastener hole. This ensures that the sealant can seal the fastener during compression.
● Be careful not to entrainment air when using sealants. In particular, do not place a ring of sealant around the fastener hole, because the air entrained in the fastener during fastening will compress and may cause the passage to blow through the sealant, which will hinder the fastener seal.
● Through practice, you will be able to judge the size of beads, so as to avoid extrusion and subsequent cleaning.
● Unsolidified sealants can be removed with a clean dry rag and then dipped slightly in mineral turpentine or liquor. It is best to remove excess curing sealants with plastic scrapers to avoid damaging metal surfaces.
● Avoid any unnecessary sealant on the surface of paint, because silica gel will affect the adhesion of coatings.
● Smear the sealant can be handled by gently cleaning the area with a nonmetallic scrubbing medium.
5. Maintance for steel sheets
Original design, environment of the installation, and maintenance of
the installation is the three main factors that effects on metal sheets lifetime.Maintenance is the biggest factor,so please read the followign details:
● Every 3 months regular inspection for problems,so we could avoid they become major corrosion reason;
● Place near coastal or industrial influences need every 3month regular washing down;
● Remove leaves and other debris from drains, downpipes, guards, tanks, holes and other overflows;
● Keep no soil, concrete and debris near the wall;
● Do not spray pesticides excessively.
