Composite Decking Sheet Building Installation

The floor decking sheet is light in weight, high in strength, and has good load bearing and shock resistance.
Provide more space for laying wire bushings

Quantity:
  • YX76-305-915
  • YUMI

1. Intruduction of floor decking sheets:

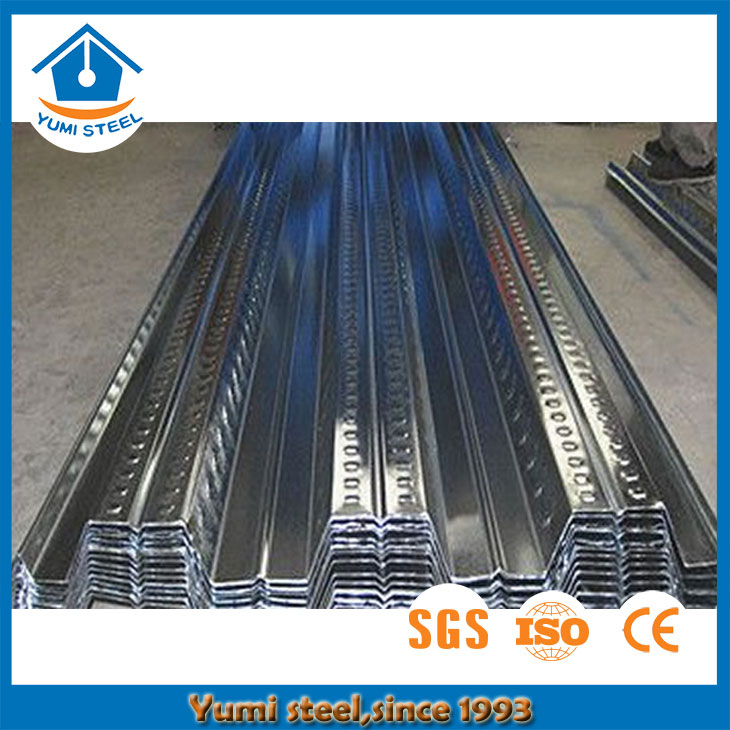

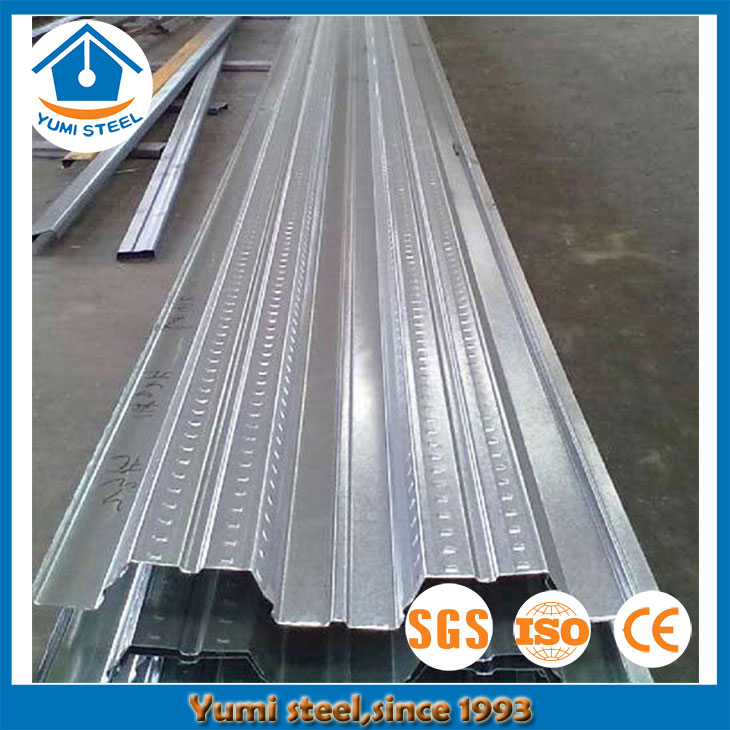

        The floor decking sheet, also known as the steel slab, the building profiled steel plate, is formed by rolling and cold forming the galvanized sheet, and the shape can be pressed into a v-shaped, u-shaped, trapezoidal or similar waveform. It is mainly used as a permanent plate and can also be used for other purposes.

799


 2.Specifications of floor decking sheets:

        Open floor decking sheet, has various shape types,

YX35-125-750
YX51-250-750
YX51-305-915
YX51-341-1025
YX75-200-600
YX75-230-690
YX76-344-688
YX130-300-600
YX76-305-915


 Here is the model type of YX76-305-915:


Steel_Floor_Decking_Sheet_Galvanized_Decking_Sheet_Metal_Floor_Decking





Deflection Limited = L/130
Span THK Composite weight(kg/m²) Single spans(mm) Two spans(mm) Three spans(mm)
Slab THK(mm) sheet
THK(mm)
100 0.75 179.86 2140 2400 2470
1 183.58 2260 2560 2630
1.2 184.3 2330 2730 2740
110 0.75 198.74 2100 2350 2440
1 201.74 2200 2520 2570
1.2 203.65 2290 2680 2690
120 0.75 219.6 2040 2310 2400
1 221.69 2150 2470 2530
1.2 223.79 2240 2630 2640
130 0.75 244.6 1980 2260 2330
1 246.69 2090 2420 2460
1.2 248.79 2180 2580 2570
140 0.75 269.6 1930 2220 2280
1 271.69 2040 2380 2400
1.2 273.79 2130 2530 2510
150 0.75 294.6 1890 2180 2230
1 296.69 2000 2340 2350
1.2 298.79 2090 2480 2460


3. Advantages of floor decking sheets:


  • Beautiful and practical, overall design

  • Durable and easy to maintain

  • Easy to expand, cost-effective

  • Convenient construction and short construction period

  • Wide range of uses, affordable

  • Work types can be multi-layered, which can significantly shorten the construction period


4. Applications of floor decking sheets:


  • The floor slab is used as a template for pouring concrete, which saves a lot of temporary templates and saves the template support;

  • The floor panels are easy to stack, transport and install, reducing construction workload and improving workers' construction conditions;

  • After the welding nail penetrates the floor bearing plate and is welded on the upper flange of the steel beam, the floor bearing plate can play lateral support to the steel beam during the construction stage;

  • It is convenient to lay communication, power supply and heating pipelines;

  • The floor slab is directly supported on the steel beam as a template, which can provide a spacious working platform for various types of work, so pouring concrete and other.


5. Steel standard of floor decking sheets:


Steel standards Yield Strength(MPa) Tensile strength (N/mm²)
Q235 ≥235 215
Q345 ≥345 300
G500 ≥500 520
G550 ≥550 550
