1. Steel roofing basic information:
YX38-333-1000 is one deep trapezoidal steel roofing,it could be used as exterior wall or roofing sheets for steel buildings or where need excellent drainage performance,especially for agricultural buildings.

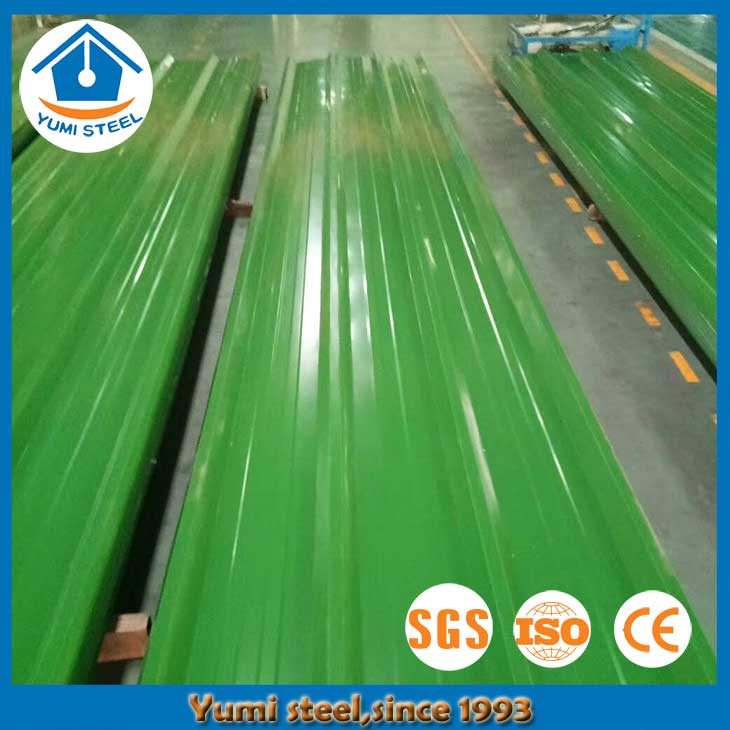

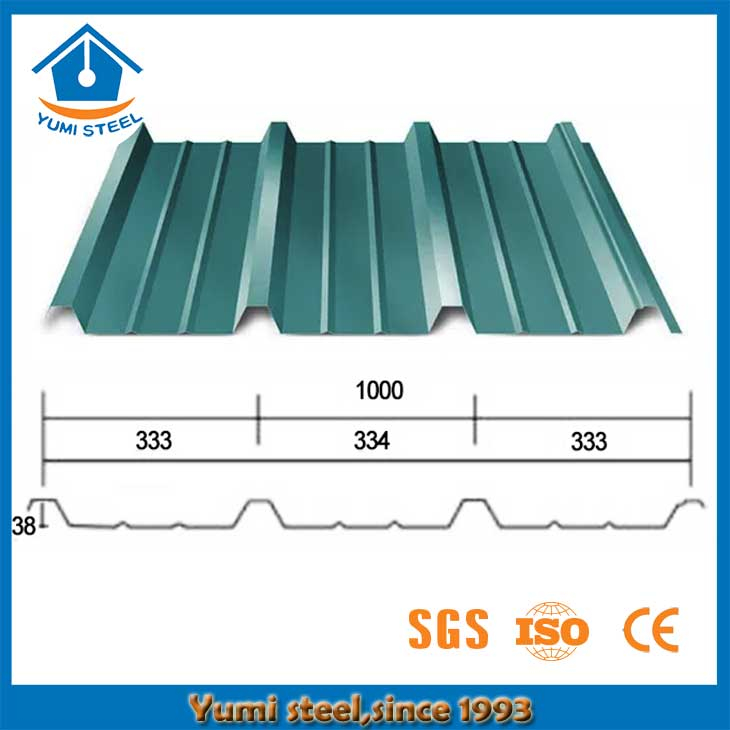

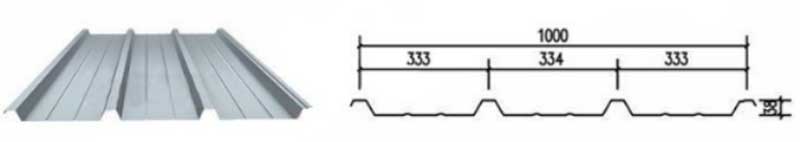

Specifications:
Model NO. | YX38-333-1000 | |
Effective width | 1000 mm | |
Feeding width | 1200 mm | |
Rib height | 38 mm | |
Rib distance | 333 mm | |
Rib quantity | 4 Ribs | |
Length | 20FT container: ≤ 5.85m |
Theoretical weight for color coated corrugated steel sheets | ||||||
Thickness(mm) | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
Theoretical weight/meter (KG/M) | 2.826 | 3.768 | 4.71 | 5.652 | 6.594 | 7.536 |
Remark:Torenlance will be 0.09-0.19KG/M. | ||||||
Note:For other kind of material weight,please contact us for more,thank you.
Specification tolerance:
Pitch | Rib distance | Effective width | Thickness | Panel length |
±1mm | ±2mm | N/A | ±0.03mm | ±5mm |
Material range:
Material | Thickness range | Available color | Application |
AL-MG-MN alloy metal sheets | 0.7 - 1.2mm | Aluminum natural color or as per customized | Wall claddings |
PPGI /PPGL steel sheets | 0.30 - 0.75mm | As per Ral color swatches | Roof & Wall claddings |
Galvanized steel sheets | 0.30 - 0.80mm | Galvanized natural color | Roof & Wall claddings |
Alu-zinc steel sheets | 0.30 - 0.80mm | Galvalume natural color |
Note:All our steel corrugated sheets are based on testing in accordance with China GB standards(Q235/ Q345/Q355/G550).At the same time,we could also offer ASTM/JIS/EN standards steel material.
Available colors:
If you want to order in other colors,please kindly advise in RAL color swatch,or offer one color reference.
2. Product features of metal roofing:
☆Excellent rainproof effects, exquisite appearance, and durable;
☆Convenient installation and economical;
☆It can be installed in reverse, two different installation types are optional.
3. Technical data:
Engineering load tables(Minimum: 3 spans condition):
Span(mm) | Allowable load (kg/m⊃2;) | ||
Thickness | 0.45 mm | 0.60 mm | 0.75 mm |
900 | 161.12 | 317.36 | 439.42 |
1050 | 136.71 | 273.42 | 375.95 |
1200 | 122.06 | 239.24 | 327.12 |
1300 | 107.41 | 190.41 | 258.77 |
Physical properties:
Thickness | Section Modulus | Moment of Inertia Mid-span | Factored Resistance | ||||
Mid-span | Support | Moment | |||||
Mid-span | Support | Exterior | Interior | ||||
0.50 | 2.14 | 1.91 | 67.2 | 443.0 | 395.4 | 1.7 | 2.5 |
0.65 | 3.15 | 2.74 | 90.9 | 652.1 | 567.2 | 2.8 | 4.3 |
0.80 | 4.12 | 3.53 | 113.5 | 852.8 | 730.7 | 4.3 | 6.5 |
Note:This is based on GB Q235,which is meaning yield strength no less than 235Mpa.
4. Metal roofing application:
YX38-333-1000 is with deep trapezoidal,so it’s suitable for agricultural buildings,industrial buildings,commercial buildings,and residential houses,which need good drainage requirements.

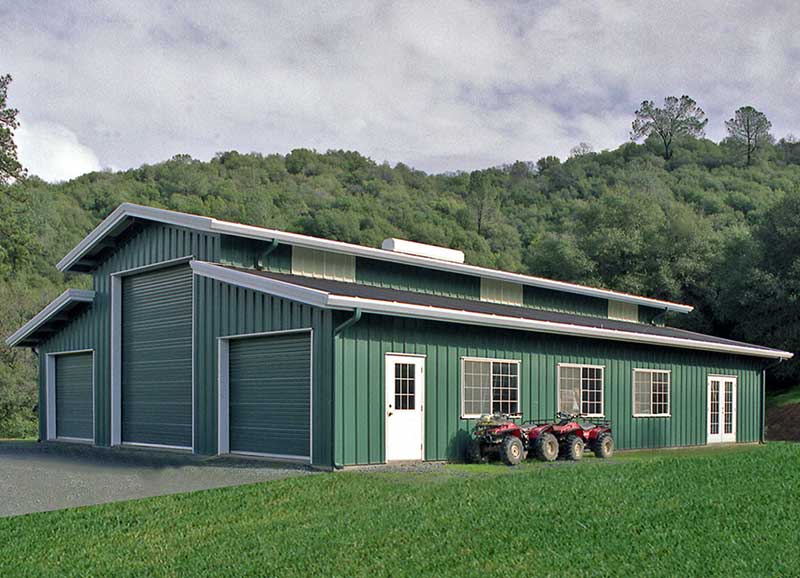

5.Metal roofing project site installation rendering:
6. Flashings details of steel roofing:
Flashing showing on the picture is just for your reference.You could also contact us for more details or you could ask us to send the roofing sheets specs details,and then you could design by yourself.
7. Material lifetime reference:
Material | Coating type | Life time |
PPGI steel coils | PE | 8-10 years |
SMP | 10-15 years | |
HDP | 15-20 years | |
PVDF | 25-30 years | |
PPGL steel coils | PE | 10-12 years |
SMP | 12-18 years | |
HDP | 18-25 years | |
PVDF | 25-35 years |
8. Frequently asked questions:
☆ How do I know if your metal roofing is suitable for my house or project?
A: 1) Please show us your project drawing;
2) Please let us know your regional climate,or your city name,our engineer could check and advise which type will be suitable.
☆ May I get a rough quantities by our rough size?
A: Yes.If it’s wall cladding,only need to offer us the length,width and height of building.If it’s roof cladding,just need to offer us the length and width.
☆ Can I build steel roofing on my existing roof?
A: Yes,just inform us this information and show us your existing roof pictures.Also please offer us the roof plan,and our engineer will check and offer advice or design for you.
☆ How is the shipment for metal roofing?

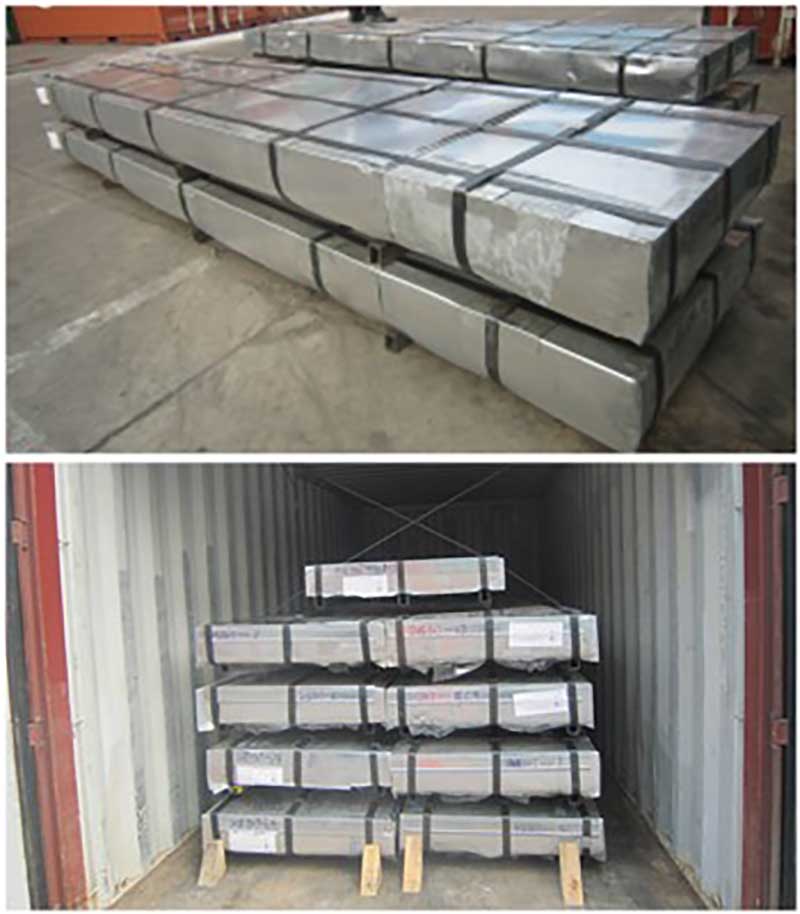

A: Our common packing is as following,which is with moisture-proof kraft paper packaging.
More better packing is as following,which is with steel sheets packaging.
☆ If we meet up any installation problem,could you support with this?
A: Yes,we can.We could offer you installation manual,and if still any problem,please describe,and we will check and reply you in time.
☆ If any after-sales problem happened,what can I do?
A: Please feel free to contact our sales department,we will do our best to solve the problem for you.Yumi steel will take responsibility to do what we need to do for you.
