TD01-TD07
Yumi steel
730890000

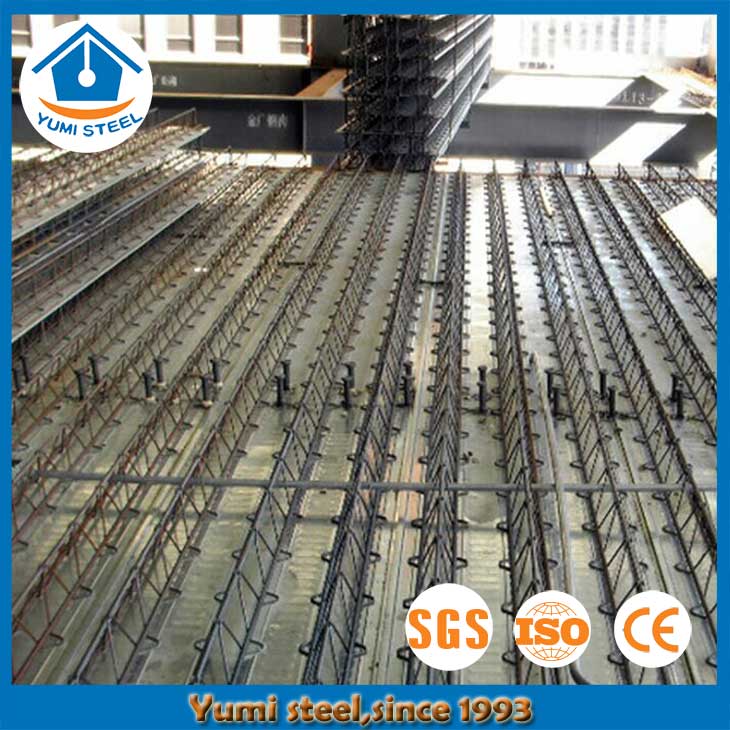

1.Truss deck introduction:
The steel truss deck is made by steel bars and steel sheets,which is also one kind of steel decks for high rise buildings.Comparing to other steel decks,this type has the following advantages:
It reduce factors that can make material costs increased:
Because it changes the usage of corrugated steel sheets,and as a template during the installation time,it reduce the dosage of steel sheets.At the same time,it reduce the anti-corrosion galvanizing layer requirements for profiled steel sheets.
It changes the force mode of floor slab during the construction time:
It can offer greater strength,in order to accommodate larger unsupported slab spans.
It reduce customer’s maintenance cost.
The corrugated steel sheet is only used as a template for the construction stage.It doesn’t need to be treated for fire protection or meet requirements of the building life in the anti-corrosion,so there is no need to consider the cost of post-maintenance.
2.Product specifications:
Product Composition | Top rebars,Bottom rebars,Middle rebars,Bracket vertical rebars,Bottom mould | |
Product parameters | Top rebars & Bottom rebars:Hot-rolled coiled steel bar H R B 4 0 0E ,H P B 3 0 0 ； | |
Middle rebars:Hot-rolled coiled steel rebar H R B 4 0 0 or Cold rolled round rebar with equivalent performance C R B 5 5 0 | ||
Bracket vertical rebars:Hot-rolled coiled steel bar H R B 4 0 0 ,H P B 3 0 0 ； | ||
Bottom sheets: Q 2 3 5 cold rolled steel sheet; | ||
Product specs | Truss deck | Specs |
Bottom sheet width(mm) | 576mm 600mm | |
Length(m) | 1.0-11.9 | |
Floor thickness(mm) | 100-300 | |
Steel truss height(mm) | 70-270 | |
Concrete cover thickness(mm) | 15（Top&Bottom of truss is 15mm) | |
Bottom mould thickness | 0.50mm~0.80mm | |
3.Production & Installation videos:
4.Deck truss product applications:
☆High-rise, super high-rise building structure:
The high-rise and super high-rises not only have very strict requirements on the quality of the structure,but also have special requirements for the construction period and site safety.To use truss deck floor slabs on high-rise buildings,it can form a plurality of relatively independent and safe working faces,and reducing the workload of on-site support and demolishing of stencils, and greatly improving the construction progress.
☆Long span steel structure:
The scientific and reasonable mechanical design enables steel truss floor decking to meet the 5M unsupported large span design requirements.During the actual construction process and before the concrete is poured,a simple temporary support can be set in the slab span to meet the construction requirements.At the same time,it can ensure the slab strength requirements in using phase,and speed up the construction progress and save costs.
☆Irregular special shape structure:
For round,elliptical and other special-shaped steel structures,the steel deck are usually designed as two-way slabs.To use reinforced steel bar truss deck can solve the support problem of floor construction in irregular shape structures well.
5.Deck truss selection table:
6.Deck truss VS. Corrugated steel deck:
Contrast point | Deck truss VS. Corrugated steel deck |
Construction period | Comparing to profiled steel deck,steel truss deck can reudce 60-70% steel bars banding quantities,and reduce construction period for each floor. |
Quality | 1,Steel truss deck is produced by computer numerical control equipment,steel bar distance is evenly arranged and even by force; |
Convenient and safe | 1,The base mold and steel rebars of deck truss are integrated in factory,which make it easy construction; |
Economic rationality | 1,The force mode of steel truss deck is reasonable, the material selection is economical, and the comprehensive cost advantage is obvious; |
Cost reducing | 1,Steel truss deck can reduce the labor consumption; |
