YX35-125-750
Model type

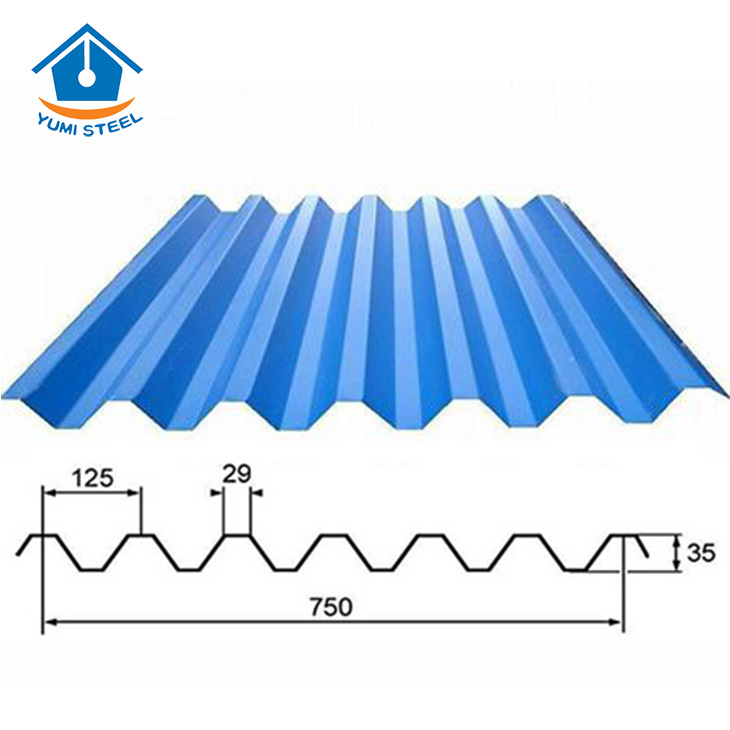

YX 35-125-750 specifications
Model NO. : | YX 35-125-750 |
Rib height : | 35 mm |
Rib distance : | 125 mm |
Modular width : | 750 mm |
Available thickness : | 0.30 - 0.75 mm for steel sheets; 0.50 - 1.20 mm for aluminum sheets and Al-Mg-Mn alloy metal sheets |
Available length : | 20FT container: ≤ 5.95m |
Available material : | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets |
Surface treatment : | Original pre-painted color |
Coating type : | PE, PVDF, HDP, SMP, etc. |
Square corrugated cladding applications
The corrugated metal plate is a deep trapezoid, suitable for commercial building, office building, agricultural building, residential , industrial building and other places with good drainage requirements.
Also suitable for house enclosure or road enclosure, you can contact us for more details.
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
Premium packing:
Packed with steel box,in order to protect the panels in good status before installation.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
Model type
YX 35-125-750 specifications
Model NO. : | YX 35-125-750 |
Rib height : | 35 mm |
Rib distance : | 125 mm |
Modular width : | 750 mm |
Available thickness : | 0.30 - 0.75 mm for steel sheets; 0.50 - 1.20 mm for aluminum sheets and Al-Mg-Mn alloy metal sheets |
Available length : | 20FT container: ≤ 5.95m |
Available material : | PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets |
Surface treatment : | Original pre-painted color |
Coating type : | PE, PVDF, HDP, SMP, etc. |
Square corrugated cladding applications
The corrugated metal plate is a deep trapezoid, suitable for commercial building, office building, agricultural building, residential , industrial building and other places with good drainage requirements.
Also suitable for house enclosure or road enclosure, you can contact us for more details.
Packing & Delivery:
☆ Packing:
Seaworthy packing standards:
Premium packing:
Packed with steel box,in order to protect the panels in good status before installation.
☆ Delivery:
Delivery time for regular colors,coating types and thickness: 7-10 days ;
Delivery time for special colors,coating types and thickness: 15-25 days ;
Delivery term: FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
