Light Gauge Steel Z Section Purlins

China Galvanized Steel Strips Steel C/Z Section Shed Purlins, Find details about China Roof Purlin, Steel C Section from Galvanized Steel Strips Steel C/Z Section Shed Purlins - Xiamen Yumi Import & Export Co., Ltd.

Quantity:
  • Z140-300
  • Yumi steel
  • 730890000

1. Brief introduction:

Product name

Z purlin

Section type

Z-sections

Height

140,160,180,200,220,250mm

Thickness

1.7-3.0mm

Length

Max 5.8meters for 20FT container;
Max 11.8meters for 40FT container.

Material

Hot galvanised steel sheet Steel quality
DX51D+Z40-275G/M²

Max 450 G/M²

Note:For more size details of Z section steel,please contact us,thank you.


2. Pre-punching service of steel frame:

In order to make construction on-site faster and easier,steel Z purlins could be pre-punched in our factory.

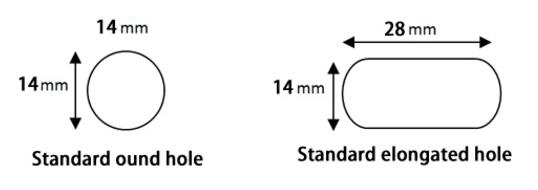

There is two kinds of holes we have,as per Chinese GB standards,round holes and elongated holes,which is as per the following picture showing:

Holes are made during production at continuous line,some additional notes are showing as follows:

• Holes can be made in a row or positions as per your design;

• Oval and rectangular holes can be rotated by 90°;

• Please contact us for additional information about the pre-punching possibilities,if you have any special hole punching requirement about hole size and hole shapes.



3.  Zee frames product application:

Zee Purlins are also known as horizontal beams that are used to attach roofing sheets and vertical wall cladding sitting between the sheeting and the primary building or wall structure. And when supporting vertical wall cladding they are also known as rails.

Yumi steel Zee purlins could match your material standards requirement,to support your projects.

4. Metal Z purlin ordering:


Please offer us the following details when you have orders for your project or sales:

• Type of purlin(C/Z purlins):

• Thickness(1.7-3.0mm):

• Length(Please consider the container loading length limitation,or if you have cutting           list,please send it together):

• Purlin size(For example Z150)

• Order quantity(We could calculate the container loading for  you)

• Hole punching requirement(If you have design):

• Zinc coating requirement(Z60 - 275 g/m²,max 450 g/m²):

• Steel material standards(Q195, Q235, Q345, or ASTM, EN, etc.)


In case of pre-punched holes are required,please also send us purlins drawings,which is showing the position of the holes.Then we could check all the details together and offer you the exact price.

5. Characteristics of Zee purlins:

1)High strength and good quality to weight ratio;

2) Economical price;

3) Could be used for max span to 11.0meters;

4) Could save time for installation;

5) Lightweight to be lifted and installed;

6) Could be customized size.


6. Z purlin weight reference:

Product name


Size details

Thickness(mm)


Weight(kg/meter)


h

b-1

b-2

c

Z purlin

140

55

55

20

1.7












3.87

Z purlin

140

53

57

20

3.87

Z purlin

160

53

57

20

4.14

Z purlin

160

55

55

20

4.14

Z purlin

180

63

67

20

4.67

Z purlin

180

57

63

20

4.54

Z purlin

200

57

63

20

4.80

Z purlin

220

57

63

20

5.07

Z purlin

220

63

67

20

5.20

Z purlin

250

63

67

20

5.60

Z purlin

250

68

72

20

5.74

Z purlin

250

73

77

20

5.87

Z purlin

140

55

55

20

2.0












4.55

Z purlin

140

53

57

20

4.55

Z purlin

160

53

57

20

4.87

Z purlin

160

55

55

20

4.87

Z purlin

180

63

67

20

5.50

Z purlin

180

57

63

20

5.34

Z purlin

200

57

63

20

5.65

Z purlin

220

57

63

20

5.97

Z purlin

220

63

67

20

6.12

Z purlin

250

63

67

20

6.59

Z purlin

250

68

72

20

6.75

Z purlin

250

73

77

20

6.91

Z purlin

140

55

55

20

2.5












5.69

Z purlin

140

53

57

20

5.69

Z purlin

160

53

57

20

6.08

Z purlin

160

55

55

20

6.08

Z purlin

180

63

67

20

6.87

Z purlin

180

57

63

20

6.67

Z purlin

200

57

63

20

7.07

Z purlin

220

57

63

20

7.46

Z purlin

220

63

67

20

7.65

Z purlin

250

63

67

20

8.24

Z purlin

250

68

72

20

8.44

Z purlin

250

73

77

20

8.64

Z purlin

140

55

55

20

3.0












6.83

Z purlin

140

53

57

20

6.83

Z purlin

160

53

57

20

7.30

Z purlin

160

55

55

20

7.30

Z purlin

180

63

67

20

8.24

Z purlin

180

57

63

20

8.01

Z purlin

200

57

63

20

8.48

Z purlin

220

57

63

20

8.95

Z purlin

220

63

67

20

9.18

Z purlin

250

63

67

20

9.89

Z purlin

250

68

72

20

10.13

Z purlin

250

73

77

20

10.36

Note:This weight is based on theoretical weight,the tolerance is around ±0.50kg/meter.
