Light weight Galvanized Metal steel Decking for High Buildings

Floor decking sheets a steel plate pressed and formed by concrete with a thickness of 0.8-1.2mm, which is widely used in steel buildings such as exhibition halls, workshops and large supermarkets.

Availability:
Quantity:
  • YX51-305-915

Intruduction of floor decking sheets:

The floor deck is also called profiled steel plate and steel deck. The earliest name is profiled steel plate, a collective name for all steel plates that have been pressed and formed by a press machine. It is formed by rolling and cold-bending galvanized steel sheets, and its cross-section is V-shaped, U-shaped, trapezoidal or similar. It is mainly used as a permanent form work, and can also be selected for other purposes.

The earliest profiled steel plates were mainly used as roof panels for factory buildings, followed by profiled steel plates for floors, which were gradually classified as floor decks.

Advantages

It has good usability, high strength, strong corrosion resistance, has excellent interface characteristics, and is suitable for industrial and civil buildings, warehouses, and special buildings.

Adapt rapidly construction requirements of the main steel structure and provided work procedures had very fast.

Improve the rigidity of the floor, saving the amount of steel and concrete.

Surface embossed increase the bonding of floor deck and concrete, make the floor deck system have high strength is load capacity.

Steel deck sheet specifications:

Thickness :

0.70~1.50mm

Steel material :

galvanized steel sheets

Material standards :

Q235, Q345

Zinc coating :

120 ~ 275 g/m²

Product Application:

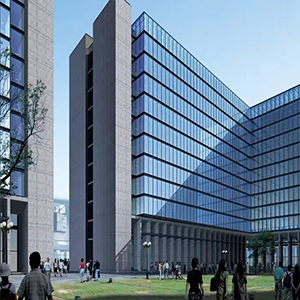

Steel structure buildings

Steel structure buildings

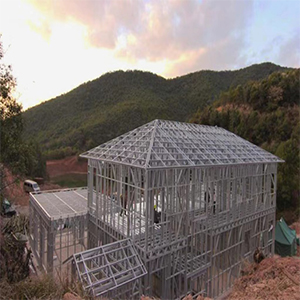

Engineered steel framed deck

Engineered steel framed deck

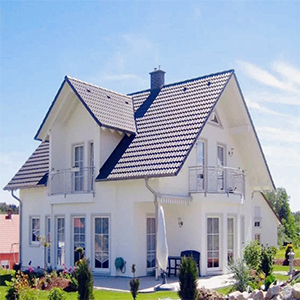

Deplux structure buildings

Deplux structure buildings

Design Considerations

These are following design considerations that we put to manufacture these sheets:

1)Adhesion, fixing or ballasting are notable design factors for long lasting capability

2)Materials chosen are fire proof

3)Well designed to bear extra loads

4)Condensation risk is also the designing factor

5)Designed to provide better insulation

6)Able to fulfill the acoustic requirements

7)Whole design is compact and light in weight

8)Designed meticulously in conjugation with the aesthetic importance

Inquiry contact details:

Considering fast reply,please call us by +86-592-6095031.

Considering expensive international call charges,please send us mail by admin@yumisteel.com .

People from Yumi steel will use our sincere smile, in exchange for customer satisfaction with our services.
