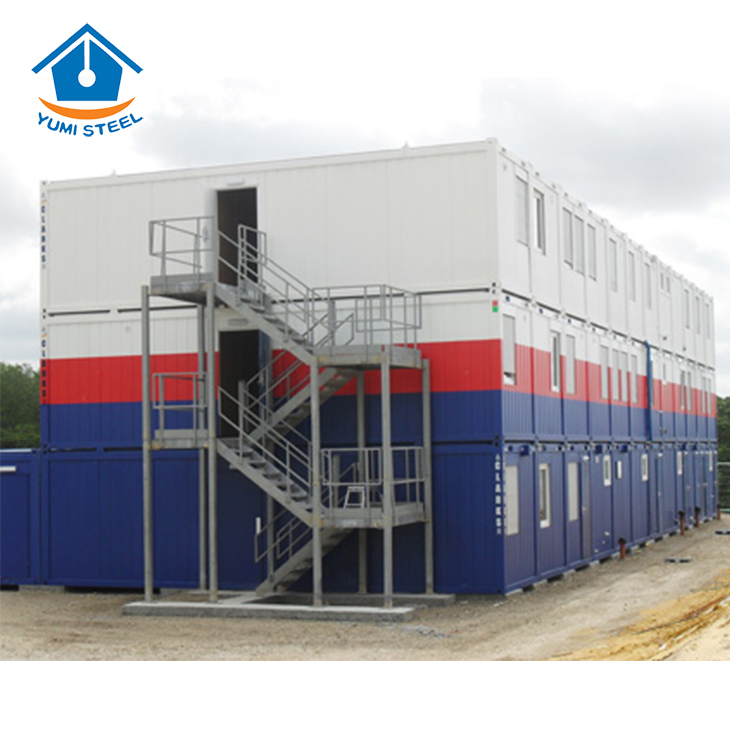

Metal Steel Frame Prefab Container House for Living/Office Building

The prefabricated container building is kind of assemble container house, widly used in hotels, accommodations, shops, bars, cafes, carpot, villas, restaurants, offices, apartments, and other fields.
Availability:
Quantity:
  • YM-CTN

Galvanised steel frame container highlights

Safe structural building, live loads: top frame-1kN/m2, bottoom frame-2.5kN/m2; wind resistant: 1kN/m2.

Different style type container can be choosed, be large, be small, be special, all can as your design.

Durability, all steel frames are hot dip galvanized,enhance the corrosion resistance.

Easy intallation, we offer all accessaries for whole house, the steel frame, wall & roof panels, door, windows,connerctions, nails, etc., convenient install for you.

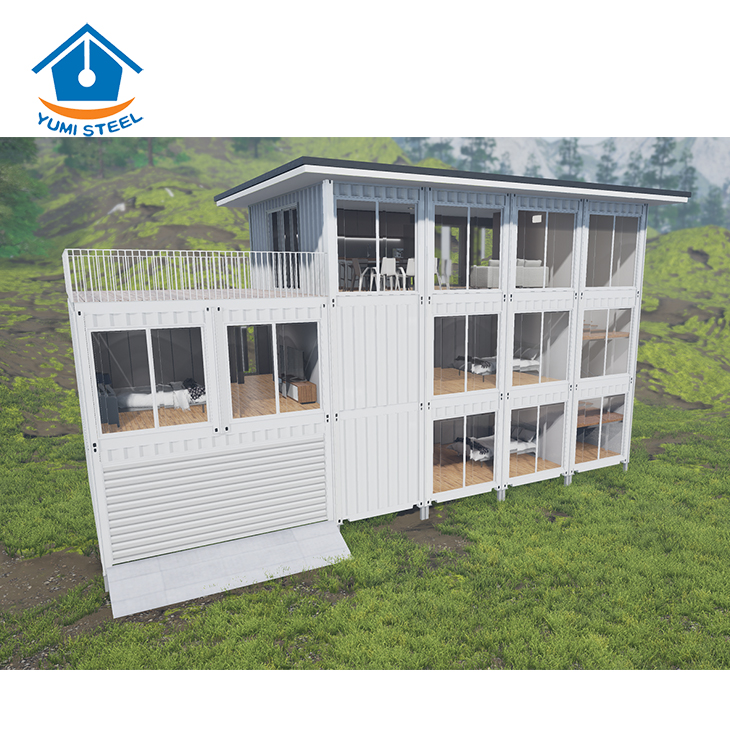

Container building style type is customized

QQ截图20190606150337


Container house size chart
Size External Dimensions Internal Dimensions Weight
Length Width Height Length Width Height
8'X8' 2435mm 2435mm 2896mm 2235mm 2235mm 2625mm 950kg
10'X8' 3025mm 2435mm 2896mm 2825mm 2235mm 2625mm 1150kg
16'X8' 4885mm 2435mm 2896mm 4685mm 2235mm 2625mm 1350kg
20'X8'
Standard
6055mm 2435mm 2896mm 5855mm 2235mm 2625mm 1800kg
24'X8' 7200mm 2435mm 2896mm 7000mm 2235mm 2625mm 2300kg
30'X8' 9000mm 2435mm 2896mm 8800mm 2235mm 2625mm 2450kg
20'X10' 6055mm 3000mm 2896mm 5855mm 2800mm 2625mm 2380kg
Remark:Also available external height of 3300mm.Individual packing height:648mm.


Assemble container material list
QQ截图20190606150724

Standard size:

External Size:5950X3000X2800mm   Internal Size:5750X2800X2500mm

Material details:

NO.

Item

Material specification

Quantity

1

Wall panels

50 mm thick Rockwool sandwich panels;
Steel sheet thickness:0.40mm
Rockwool density:80KG/M³
Size:2.56m*15PCs;1.36m*2PCs;0.48m*1PCs

39.52 M²

2

3

4

Main frames

Bottom beams:2.50mm thickness
Size:5.63m*2PCs;2.68m*2PCs(With welded steel tube to support the floor)

1 Set

5

Upper beams:2.50mm thickness
Size:5.63m*2PCs;2.68m*2PCs

6

Prism:2.50mm thickness
Size:2.48m*4PCs

7

Groove plates(To connect Upper beam and wall panels)
Size:5.7m*2PCs;2.8m*2PCs

8

Corner angle steel(for each corner):8PCs

9

Galvanized square tube

Roof purlins:80*80*1.50mm
Size:2.99m*4PCs

1 Set

10

Roof purlins:40*80*1.50mm
Size:2.99m*5PCs

11

Wall purlins:50*50*1.50mm
Size:2.8m*2PCs

12

Wall purlins:40*80*1.50mm
Size:1.88m*3PCs

13

Wall purlins:40*60*1.50mm
Size:1.88m*6PCs

14

Aluminum U channel

U channel to install the wall panel

17 m

15

Roof panels

0.42mm corrugated steel sheets
Size:2.95m*6PCs

1 Set

16

Ceiling tile

0.25mm corrugated ceiling sheets
Size:2.8m*6PCs

17

Glass wool insulation coil for roof

20m Glass wool coils

18

Anti-theft steel door

2110*975mm galvanized steel door,
With integral door frame (fool installation), stainless steel handle lock and Key

1 Set

19

Anti-theft window

Plastic steel sliding window
Size:1225*975mm
Hollow glass, anti-theft window

1 Set

20

Fireproof floor

Size:2.8m*1.147m

5 PCs

21

Paint (painting process)
Color available:White/Gray Blue/Black/Red

Special paint for ships, acid and alkali resistant, corrosion resistant, color retention

1 Set

22

Fasteners

High-strength bolt, self-tapping, rivet,sealants,etc

1 Set


Packing & Loading

container package

微信图片_20200507170734

微信图片_20200521102431


Service & Support:

Xiamen Yumi Imp. &Exp. Co., Ltd. Is one combination of industry and trade company, and very professional with steel structure products in China. Because of good quality and service, competitive price, our products are sold worldwide, such as America, South America, Europe, Southeast Asia, Africa etc.

Experienced technology suport, competitive price, professional service, we are here to help you go on with your project smoothly.
