Steel Truss Bar Girder Slab Decking of Flooring Material

The steel bar truss deck sheet is a new design metal deck, made by steel bar truss and

Quantity:
  • N/A
  • YUMI
  • 92104900

Truss deck floor features:

  1. Cost saving: this kind of floor deck can reduce the cost of construcor's machanical plant, and labor cost, meanwhile, cut down about 60%-70% project time.

  2.  Convenience: due to steel bars is been welded to the steel plate in factory, it reduce some construction producers.

  3. Quality: it has the same performances with traditional floor decking sheet, mechanical properties & fire resistance.

  4. Saving building materials: composite deckign sheet is improve the rigidity of the flooring, saving the amount of steel and concrete.


Galvanized steel floor decking specifications:

truss-deck-sheet-model-type

Product component:

Top bars,Bottom bars,Lattice,Bracket vertical bars,Base sheet

Product parameters

Top bars & Bottom bars: Hot-rolled coiled steel bar HRB400E,HPB300;

Lattice:Hot-rolled coiled steel bar H R B 4 0 0 or

Cold rolled round bar with equivalent performance C R B 5 5 0 ;

Bracket vertical bars:Hot-rolled coiled steel bar H R B 4 0 0 ,H P B 3 0 0 ;

Base sheet: Q235 cold rolled steel sheet; S250GD+Z brand galvanized steel sheet;

Zinc coating range:120-275g/㎡ on both sides.

Product specifications

Truss deck Specifications
Bottom sheet width 600mm
Length

1.0m-11.9m

Floor thickness

100mm-300mm

Steel truss height

70mm-270mm

Concrete cover thickness

15mm(Top&Bottom of truss is 15mm)

Bass sheet thickness

0.5mm-0.8mm


Composite metal floor deck plate applications:

  1. High rise buildings: office tower, commercial building, financial centre, banking centre, business centre,etc.

  2. Long span construction buildings: airport terminal, railway station, train station, art centre, exhibition centre,etc.

  3. Residential house: individual house, villa, cottage, etc.

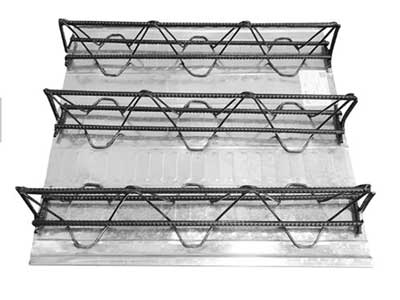

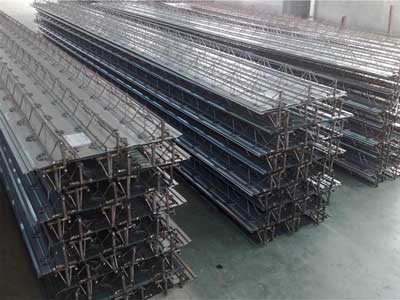

Steel floor decking sheet pictures:

  truss-deck-sheet-2..truss-deck-sheet-3


Packing & Delivery:

Packing:

Seaworthy packing standards:

1)Normal packing:

Packed with moisture-proof kraft paper.

2)Premium packing:

Packed with steel box.


Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 days ;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
