| Quantity: | |
|---|---|
C80-350
Yumi steel
730890000

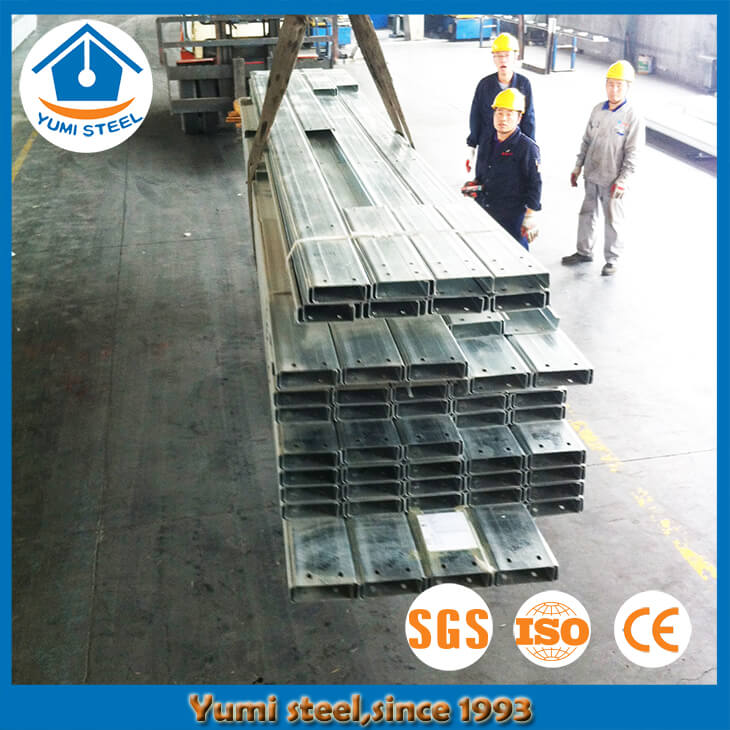

C channel are made from high-tensile&high-strength GI steel strips,which processing way is cold rolled,this kind of product has the following features:
1) Compare to hot rolled purlins,cold rolled steel purlins could save up to 35-40% in weight,that’s why we all said this product is lightweight,and lightweight features make construction easier;
2) It’s economy,because truss spacing can be increased,hence less numbers of trusses columns and foundation work resulting;
3) C structural purlins could be supplied in required lengths with pre-punched holes.So it make reduction in constrained time and cost in fabrication & erection and no wastage at construction site;
4) C Purlins’ erection is much more easier than others.
5) Because of process of cold roll forming,the tolerances on sectional dimensions is very small,which makes good performance in building construction;
6) Because of light weight,transportation cost could be lower and lift could be easier at site;
7) High versatility, durability and uniform quality.
C purlin production process has three stages,material preparation and equipment preparation and processing.
Material preparation:The related specs of GI steel strips will be prepared and loaded on equipment;
Equipment preparation:Our workshop manager will check and adjust the equipment to make sure the C steel purlin equipment is in correct status for production;
Processing:This is including holes pre-punching,cold rolled,cutting as per required length,and stack in proper position and well protected,then finally quality inspection by our QC people.
According to design and requirements, stamping equipment can be used online and offline,and holes punching could be customized.
We are equipped with a complete system of hydraulic presses with a capacity of up to 100 tons and can perform any type of stamping such as rounding and grooving.
Description | Maximum(MM) | Minimum(MM) |
W | 350 | 80 |
H1 and H2 | 80 | 40 |
L1 and L2 | 20 | 15 |
t | 3.0 | 1.7 |
When you make inquiry,please appoint out size details of each part,then we could quote as per correct size.Please take note that all our price of steel profile is based on market steel price.
Thickness margin (in mm) | Tolerance on thickness (in mm) |
≤ 0.40 | ±0.04 |
> 0.40 ≤ 0.60 | ±0.05 |
> 0.60 ≤ 0.80 | ±0.06 |
> 0.80 ≤ 1.00 | ±0.07 |
> 1.00 ≤ 1.20 | ±0.08 |
> 1.20 ≤ 1.60 | ±0.10 |
> 1.60 ≤ 2.00 | ±0.12 |
> 2.00 ≤ 2.50 | ±0.14 |
> 2.50 ≤ 3.00 | ±0.16 |
All our size tolerance is as per China standards.If you have any special requirement on material tolerance,please let us know,thank you.
6. Why us?
1) Value Engineering :
Professional technical and engineering team here to offer professional advice,technical support and design;
2) Speed of Execution :
We will have one project schedule offered before proceeding,and then strictly follow the schedule and finish on time or before the timeline;
3) Robust Background:
Leading corporate conglomerate minimizing the risk associated with any size of project.
7. Contact details for inquiry:
Contact person:Alina,Becky
Tel:+86-592-6095031
Mob/WhatsApp/Skype/Wechat:+86-13559086380
E-mail:admin@yumisteel.com;manager@yumisteel.com
With rich experience,professional industry knowledge,competitive price,Xiamen Yumi Imp. & Exp. Co., Ltd. have confidence that we could satisfy your request on orders or your projects.
