YX65-400/430/500 Standing Seam Lock Al-Mg-Mn Alloy Sheet

Al-Mg-Mn alloy panel is a kind of standing seam interlock type, it is lock by mathine and without screws, reduce the installation time. MOQ:500M² / Color&Size

Quantity:
  • YX65-300/400/430/500

Al-Mg-Mn alloy panel highlights

1.With light weight feature, it is good for workers to install it;

2.With high flexibility feature, the material is includes magnesium & manganese, that cause a certain strength and stiffness, easy to make different shapes;
3.With durable protection feature, the coating of alloy plate is PVDF, it has strong corrosion resistance, extended service life, and can be reused after removal;

4.With beautiful facade feature, the surface is smooth, and the longitudinal long large span roof won't be deformed by external forces;


Metal standing seam lock roof sheet installation method

☆ Type 01:

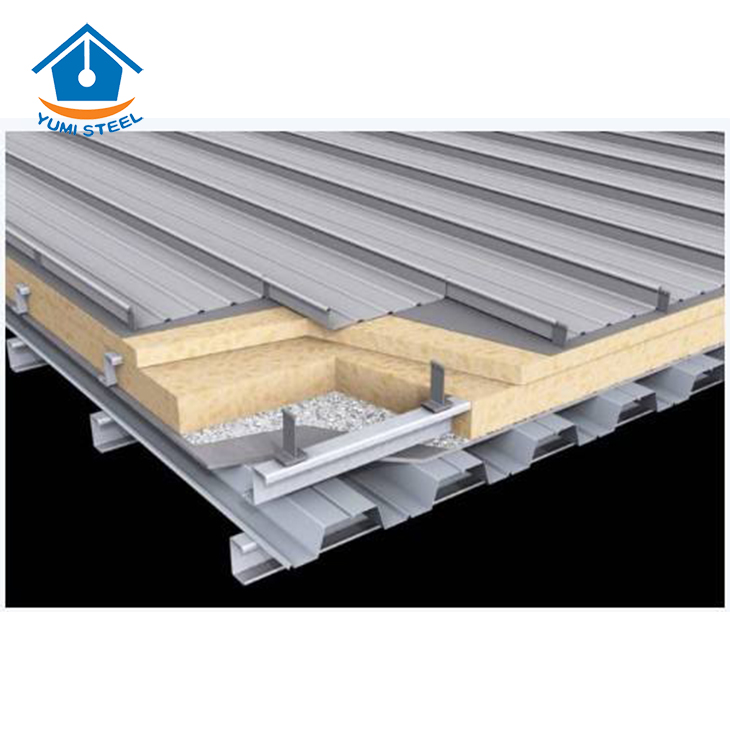

Standard roofing panel system



☆ Type 02:

large span roofing sheet system

☆ Type 03:

multi funtion roofing plate system


Aluminum facade roof cladding applications

Al-Mg-Mn alloy metal sheets is widely used in roofing system, for example for high-speed railway station, railway station, airport terminal, stadium, high-end factory, exhibition center, shopping mall, Olympic Sports center, museum, etc..


Corrugated standing seam sheets specifications

Model NO. :

YX 65-300/400/430/500

Rib height  :

65 mm

Rib distance  :

N/A

Modular width  :

300/400/430/500 mm

Available thickness :

0.30 - 0.75 mm for steel sheets;

0.50 - 1.20 mm for aluminum sheets and Al-Mg-Mn alloy metal sheets

Available length :

20FT container:  ≤ 5.95m
40FT container: ≤ 11.95m

Available material :

PPGI/ PPGL/ Aluminum sheets/ Al-Mg-Mn alloy metal sheets

Surface treatment :

Original pre-painted color

Coating type :

PE, PVDF, HDP, SMP, etc.


 Corrison  resistant PVDF coating standing seam sheets renderings

facade-wall-panel

facade-wall-panel 3

facade-wall-panel 4

facade-wall-panel 2


Packing & Delivery:

☆ Packing:

Seaworthy packing standards:

Premium packing:

Packed with steel box,in order to protect the panels in good status before installation.


☆ Delivery:

Delivery time for regular colors,coating types and thickness: 7-10 days ;

Delivery time for special colors,coating types and thickness: 15-25 day;

Delivery term: FOB/CIF/CFR/DDP is available;

We can find good forwarder for customer or accept appointed forwarder from customers.
