What are sandwich panels?

Views:6     Author:Site Editor     Publish Time: 2019-07-10      Origin:Site

What are sandwich panels?


 Sandwich panels overview:

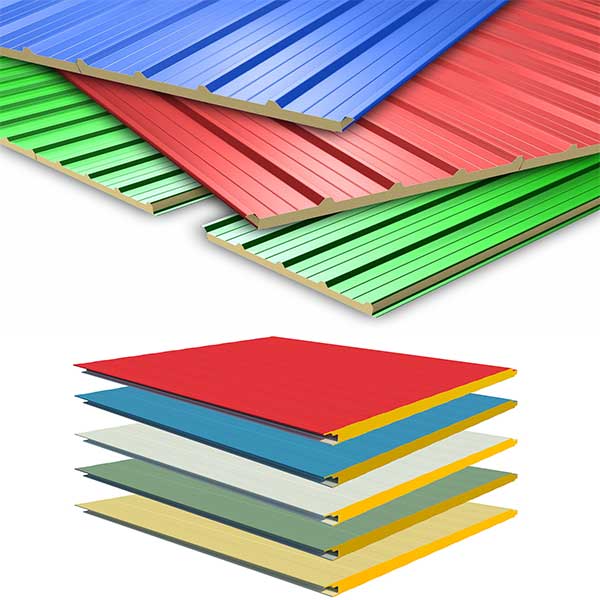

01-sandwich-panels-price

Concept:

A sandwich panels is one kind of construction material,which can be used as roof panels and wall panels for steel structure buildings.It’s combined with metal sheets and core material.The metal sheets can be galvanized steel,color coated steel,aluminum sheets,stainless sheets,aluminum foils,PVC board,etc.The core material can be expanded polyester foam,polyurethane,rock wool,mineral wool,glass wool,magnesium,etc.

Classification:

As per usages:

It can be divided into roof sandwich panels and wall sandwich panels.

As per core material type:

It can be divided into the following types:

>EPS sandwich panels

>Rock wool sandwich panels

>PU sandwich panels / PIR sandwich panels

>Glass wool sandwich panels

>Mineral wool sandwich panels

>Magnesium sandwich panels



 Main panel types Introduction:



EPS panels:

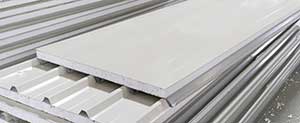

02-EPS-sandwich-panels

Panel type:

Roof & Wall panels

Steel sheet thickness:

0.30 ~ 0.70 mm

Panel thickness available:

25/ 50/ 75/ 100/ 150/ 200/ 250 mm

EPS density:

8 ~ 20 KG/M³

Surface sheets:

GI sheets;PPGI/ PPGL;Aluminum sheets;Stainless steel,PVC boad

Color:

As per RAL or customized


PIR/PUR panels:

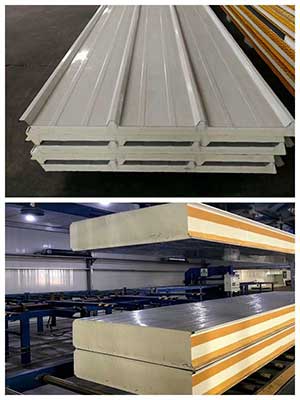

03-PU-Insulated-Polyurethane-Cold-Room-Storage-Wall-Sandwich-Panel

Panel type:

Roof & Wall panels

Steel sheet thickness:

0.40 ~ 0.70 mm

Panel thickness available:

30/ 35/ 40/ 50/ 75/ 100/ 150/ 200/ 250 mm

Density:

38 ~ 42 KG/M³

Surface sheets:

GI sheets;PPGI/ PPGL;Aluminum sheets;Stainless steel,PVC boad

Color:

As per RAL or customized


Rockwool panels:

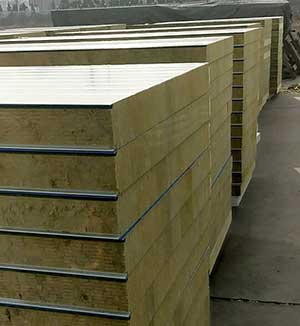

04-rock-wool-wall-sandwich-panels]-(2)

Panel type:

Roof & Wall panels

Steel sheet thickness:

0.30 ~ 0.70 mm

Panel thickness available:

50/ 60/ 75/ 80/ 100/ 150

Rockwool density:

80 ~ 150 KG/M³

Surface sheets:

GI sheets;PPGI/ PPGL;Aluminum sheets;Stainless steel,PVC boad

Color:

As per RAL or customized



For more details,please contact Yumi steel sales team,thank you.
